نام محصول:
شیر برقی مستقیم
نام انگلیسی:

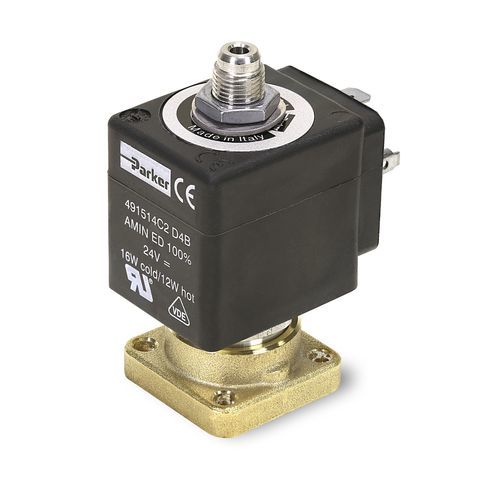

Direct-operated solenoid valve F
برند:
Parker Fluid and climate Controls Europe
مشخصات:
F Series Low Lead Brass Solenoid Valves is a broad range of Direct operated shut off valves for Healthy Beverage Dispense applications. The range provides Customers with an easy to mount flanged high performing solution, ensuring high operating pressures. Range is FDA FKM or Ruby Sealed, equipped with stainless steel nozzles for superior life, fluid compatibility and limescale resistance in use. It is also compatible with a broad range of coils fulfilling worldwide electrical standards for the relative industries.
Markets:
– Professional coffee machines
– Vending distributors for hot drinks
– Automatic water dispensers
Applications:
– Water loading control of a boiler
– Cold, hot and superheated water shut-off
– Cold water and steam mixing
Features/Benefits:
– NSF169 – 1935/2004/CE Certified
– Wide range of electrical parts including VDE and UL approvals
– Limescale build up resistant
توضیحات:
Control
direct-operated
Ports/positions
3/2-way
Function
normally closed
Medium
for water, air, for steam
Body
compact, rugged, brass
Other characteristics
beverage
DN
1.5 mm, 2 mm, 2.5 mm, 3 mm(0.059 in, 0.079 in, 0.098 in, 0.118 in)
Voltage
Max.: 240 VMin.: 24 V
Temperature
Max.: 140 °C(284 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 20 bar(290.1 psi)Min.: 7.5 bar(108.8 psi)
