نام محصول:
شیر برقی مستقیم

نام انگلیسی:
Direct-operated solenoid valve System 6

برند:
nass magnet GmbH

مشخصات:

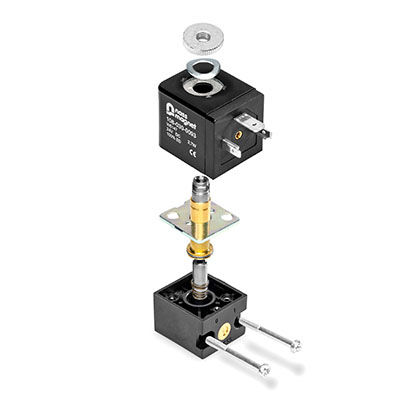

The name „System 6“ stands for a modular system of solenoid coils, armature systems, solenoid operators and solenoid valves. The diameter of the armatures of all valve components is approximately 6 mm. This value is the major characteristic of this type. The components‘ efficiency has been increased to the optimum in years of simulation, construction and practical testing.

Application of System 6

The solenoid operators and solenoid valves of System 6 can be used for operating 2/2- or 3/2 way valves. Available switching functions are normally closed and normally open. For 3/2 way seat valves of this series, typical maximum values for operating pressure and nominal width are 10 bar/1 mm. For 2/2 way devices, a maximum operating pressure of 16 bar or a maximum nominal width of 1.8 mm can be achieved.

The components of System 6 are mainly used as pilot valves in pneumatics. The solenoid operators and solenoid valves are designed for the use with compressed air or other neutral gases.

The use of other substances is possible according to prior agreement with nass magnet.

Function

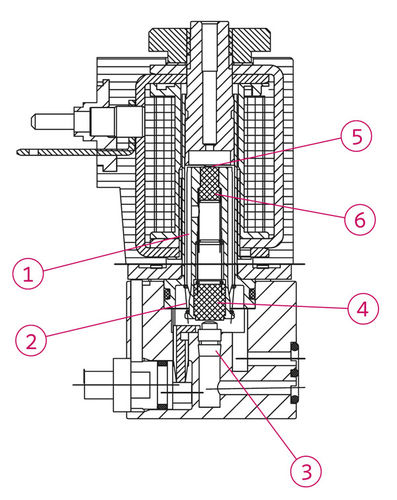

While the solenoid operator/solenoid valve (standard version, 3/2 way, normally closed) is de-energized, the armature (1) is pushed down on the lower valve seat (3) by the reset spring (2). The lower valve seat is closed by a sealing element (4). In this switch position the upper valve seat (5) in the magnetic core is open. When the valve is energized, the magnetic force exceeds the force of the reset spring and moves the armature into the opposite extreme position. In this case the upper valve seat (5) is closed by the sealing element (6), whereas the lower valve seat (3) is open.

توضیحات:
Control
direct-operated

Ports/positions
2/2-way

Function
normally closed, normally open

Medium
air

Body
modular, seat

Other characteristics
standard, switching, spring
