نام محصول:
شیر برقی مستقیم
نام انگلیسی:

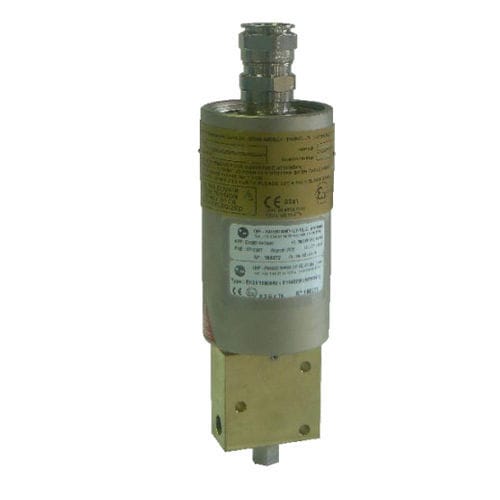

Direct-operated solenoid valve E134
برند:
IMF
مشخصات:
Options presented hereunder are coming from previous request . List is not exhaustive . Do not
hesitate to consult for a configuration matching your needs
Possible Electric feed in voltage In direct or alternative current:
• 24V – 48V – 110V – 220V
• Consumption 25W
• Ambient temperature : – 20 / + 40 °C
Electrical connections :
• Hirschmann and Jaeger connectors
Other specific voltage and connections upon request.
Some particularities :
• Reversal limit switch
• Hand control version
• Media circulation and/or leak tightness in two ways
• Version with radiator and tropicalized coils
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for gas
Body
stainless steel, aluminium
Process connection
BSP 1/4
DN
Min.: 3.2 mm(0.126 in)Max.: 4.2 mm(0.165 in)
Voltage
Min.: 24 VMax.: 48 V
Temperature
Min.: -20 °C(-4 °F)Max.: 40 °C(104 °F)
Pressure
Min.: 100 bar(1,450.4 psi)Max.: 400 bar(5,801.5 psi)
