نام محصول:
شیر برقی مستقیم
نام انگلیسی:

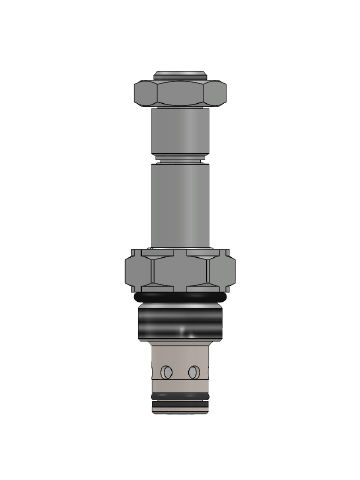

Direct-operated solenoid valve SV08-Z0
برند:
Hydrabase
مشخصات:
A solenoid operated, 2-way, normally closed, poppet-type, screw-in cartridge valve, designed for low leakage in load holding or blocking applications.
Operation
When de-energized, the SV08-Z0 acts as check valve, allowing flow from ① to ② and blocking flow in the opposite way. When energized, the cartridge’s poppet lifts to open the ② to ① path, in which condition the ① to ② flow is severely restricted. To open the ① to ② path, please refer to SV08-Z2.
Features
Unitized molded coil design, continuous-duty rated coil, cartridges are voltage interchangeable, optional for 24V and 12V coil voltage.
Coil insulation grade: H, coil protection grade: IP65.
Hardened seat for long life and low leakage.
Efficient wet-armature construction.
Industry common cavity.
Coil duty rating: Continuous from 85% to 115% of nominal voltage
Response time: First indication of change of state with 100% voltage supplied at 80% of normal flow rating. Energized: 40 ms; De-energized: 46 ms
Initial coil current draw at 20°C: Standard coil (18W) : 12V (1.5 A) , 24V (0.75 A)
Coil models: SCO113-DC12, SCO113-DC24
Filtration: See other notes
Fluid: Mineral based or synthetics with lubricating properties at viscosities of 7.4~420 cSt (50-2000 ssu)
Installation: No restriction

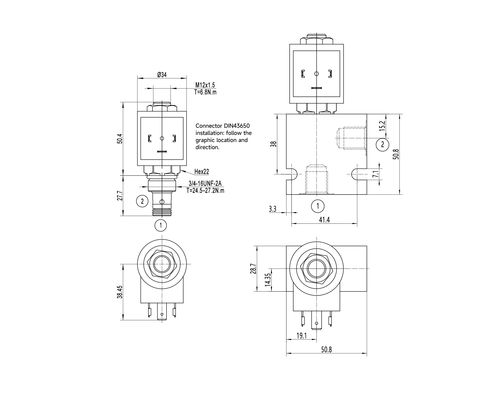

Cavity: V08-2
Cavity tool: T/H08-2RC-T-G (Rough), T/H08-2FM-T-G (Finishing)
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
normally closed
Medium
hydraulic
Body
compact, screw-in, IP65
Other characteristics
standard, cartridge
DN
0.75 in
Voltage
12 V, 24 V
Temperature
Min.: -54 °C(-65 °F)Max.: 204 °C(399 °F)
Pressure
Min.: 0 bar(0 psi)Max.: 250 bar(3,625.9 psi)
