نام محصول:
شیر برقی مستقیم
نام انگلیسی:

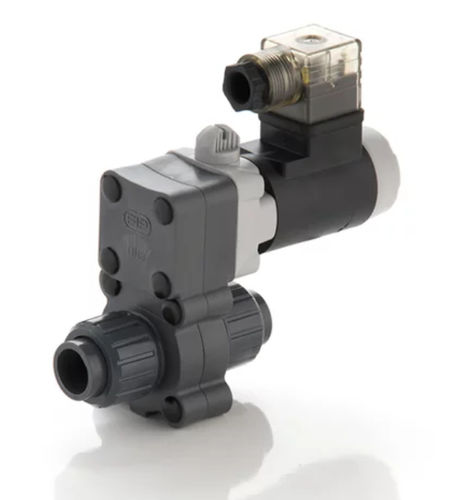

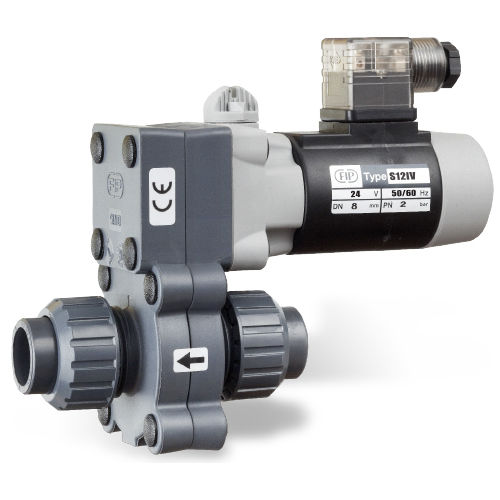

Direct-operated solenoid valve S12AV series
برند:
FIP – Formatura Iniezione Polimeri
مشخصات:
2 way solenoid valve with ASTM female union ends for solvent welding.
The solenoid valve is the ideal solution for applications requiring many rapid actuation cycles and installations in confined spaces. Thanks to the absence of metal parts in contact with the fluid or the external environment, it can also be used in the presence of aggressive fluids. Ideal for use in fertigation benches.
Main features:
Installation flexibility and ease of maintenance: high-performance solenoid electric actuator with internal moving parts designed to exceed 5 million maintenance free operating cycles. Adjustable circular section coil with IP65 protection class.
DIN 43650 electrical connector supplied as standard: includes LED indicator light and rectifier (in the case of an AC coil).
Lever shutter in EPDM or FKM and lever in stainless steel.
Suitable for use with aggressive fluids: no metal component in contact with the fluid or the external environment; all the screws are covered by PE protection plugs.
Emergency override
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for water
Body
PVC, IP65, trunnion-mounted
Other characteristics
standard, corrosion-resistant, DIN, high-performance
DN
4 mm, 6 mm, 8 mm(0.157 in, 0.236 in, 0.315 in)
Voltage
24 V
Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
Pressure
Max.: 6 bar(87 psi)Min.: 0.4 bar(5.8 psi)
