نام محصول:
شیر برقی مستقیم
نام انگلیسی:

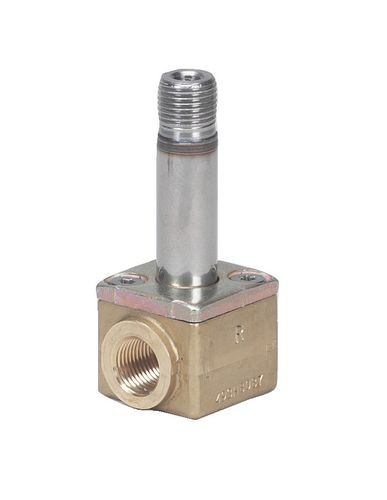

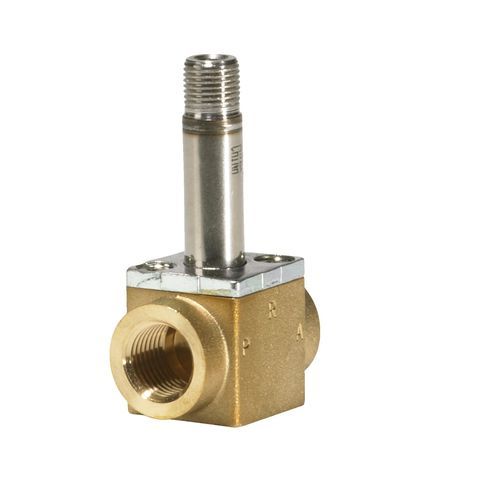

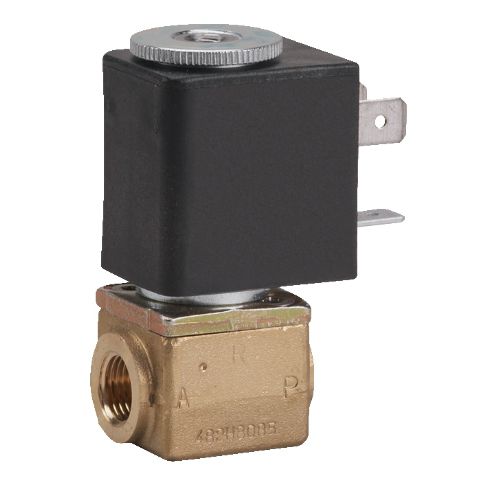

Direct-operated solenoid valve EV310A
برند:
Danfoss Industrial Automation
مشخصات:
EV310A covers a wide range of small competitive, direct-operated 3/2-way solenoid valves for use within industrial applications, for example as pilot valve.
Features
• Screw on coil
• Viscosity: Up to 20 cSt
Product details
Actuator – A
Actuator size – 9 mm
Actuator size [in] – 0.35 in
Actuator system [mm] – 9 mm
Application – Closed and Drain
China RoHS compliance – Out of scope
Connection Internal/External – Internal
Connection size [in] – 1/8
Connection type – G
Contain batteries – No
Cv value [gal/min] – 0.05 gal/min
Actuator – A
Actuator size – 9 mm
Actuator size [in] – 0.35 in
Actuator system [mm] – 9 mm
Ambient temperature max. [°C] – 50 °C
Ambient temperature max. [°F] – 122 °F
Application – Closed and Drain
Body material – Brass
China RoHS compliance – Out of scope
Connection Internal/External – Internal
Connection material – Brass
Connection size [in] – 1/8
Connection standard – ISO 228-1
Connection type – G
Contain batteries – No
Cv value [gal/min] – 0.05 gal/min
Differential pressure [bar] [max] – 20 bar
Differential pressure [bar] [min] – 0 bar
Differential pressure [psi] [max] – 290 psi
Differential pressure [psi] [min] – 0 psi
EEE category – 5 small equipment (any external dimension 50 cm)
Est. time to close, water [ms] – 10 ms
Est. time to open, water [ms] – 10 ms
EU RoHS compliance – Yes with exemptions
EU RoHS exemption clause – 6(c)
Flow direction indicator – Engraved A-P-R
Fluid Group – 1
Function – NC
In scope of WEEE – Yes
Kv value [m³/h] – 0.04 m³/h
Max media viscosity [cSt] – 20 cSt
Media tolerance comments – Neutral media
Orifice size [mm] – 1.2 mm
Orifice size fraction [in] – 3/64 in
Packing format – Multi pack
توضیحات:
Control
direct-operated
Ports/positions
3/2-way
Function
NC, NO
Medium
for water, air, oil, for vacuum
Body
small, IP65, brass
Process connection
G 1/4, G 1/8
Other characteristics
ISO, RoHS
DN
0.125 in
Temperature
Max.: 100 °C(212 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 20 bar(290.1 psi)Min.: 0 bar(0 psi)
