نام محصول:
شیر برقی مستقیم
نام انگلیسی:

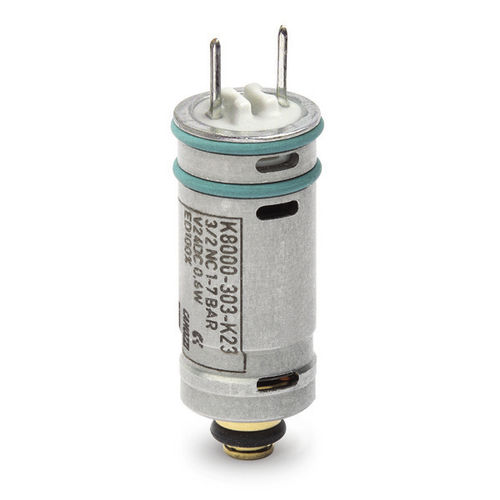

Direct-operated solenoid valve K8 series
برند:
CAMOZZI AUTOMATION
مشخصات:
» Compact design
» High performances
» Manifold mounting
» Long life
» Version for use with oxygen available
Thanks to their particular design these valves can be used in applications where very compact solutions are required as well as high performances.
Series K8 is used to control actuators or very small devices and it is suitable for portable equipments thanks to low power consumption, reduced weight and dimensions.
The universal (UNI) version enables to mix two different gaseous fluids or to select the path of the gaseous fluid in the pneumatic circuit.
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC, NO
Medium
air
Body
compact, PBT, manifold, brass, stainless steel
Other characteristics
high-performance, plug
DN
Max.: 0.7 mm(0.028 in)Min.: 0.5 mm(0.02 in)
Voltage
6 V, 12 V, 24 V
Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
Pressure
Max.: 7 bar(101.5 psi)Min.: -1 bar(-14.5 psi)
