نام محصول:

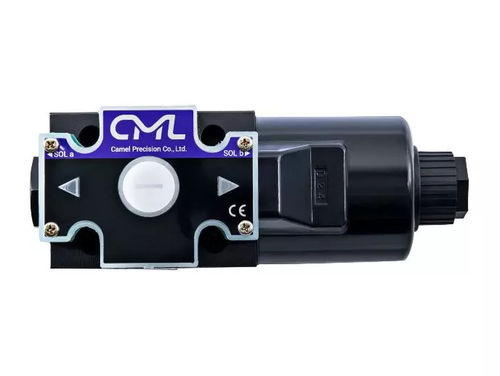

شیر برقی مستقیم
نام انگلیسی:
Direct-operated solenoid valve WE42-G03-B11B-A220-N
برند:
Camel Precision Co., Ltd.
مشخصات:
Solenoid Operated Directional Valves, Actuated Directional Spool Valve, Directional Control Spool Valve
CML High Back Pressure Type Solenoid Valve WE series are used in the direction switching operation of Shoemaking machinery, metal processing machinery, and various hydraulic systems. Small size, sensitive switch action, fast switching and high efficiency. Applicable to international standards such as ISO, CETOP, NFPA and DIN.
The WE series has 10 diameters, with junction box and plug-type wiring methods, suitable for 50 / 60Hz current, the maximum operating pressure is 210bar, the maximum return pressure is 100bar, and the flow range is 63 ~ 120 (LPM). The spool type and reverse assembly can be selected according to the needs of the circuit.
For Spool type, Pressure Drop Curve and Assembly Instruction or related information, please refer to the attachment at the bottom of the page or contact CML professionals.
Feature
High pressure, large flow, low noise, Smooth motion when switching.
Dual-channel design, low impedance, high efficiency.
ISO standard measurements, easy to install.
Clear directional light indication
100% inspected, stable high quality.
Application
Metal Processing
Cutting machinery: Four-post cutting machine, plane cutting machine, gantry cutting machine.
Die casting machine industry: Hot and Cold types die casting machine, Aluminum extrusion machine, Vertical squeeze Casting Machine, Gravity die casting machine.
Machine Tool Industry: CNC lathe, CNC milling machine, CNC turning and milling machine, CNC Surface grinder machine, band saw, circular saw.
توضیحات:
Control
direct-operated
Ports/positions
4/3-way
Medium
hydraulic
Body
small, large, metal, aluminium, metal, vertical
Other characteristics
ISO, standard, switching, DIN, actuated, spool, spool type, control
DN
9 mm(0.354 in)
Voltage
Max.: 240 VMin.: 12 V
Pressure
100 bar, 210 bar(1,450.4 psi, 3,045.8 psi)
