نام محصول:
شیر برقی مستقیم
نام انگلیسی:

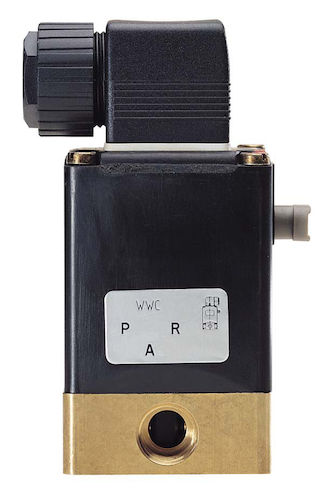

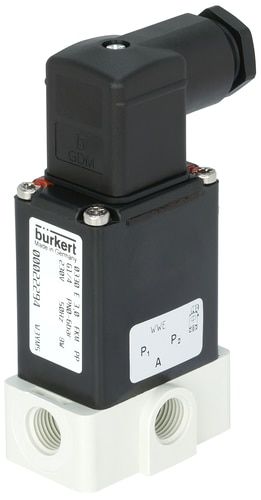

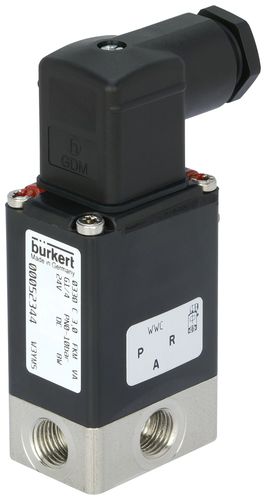

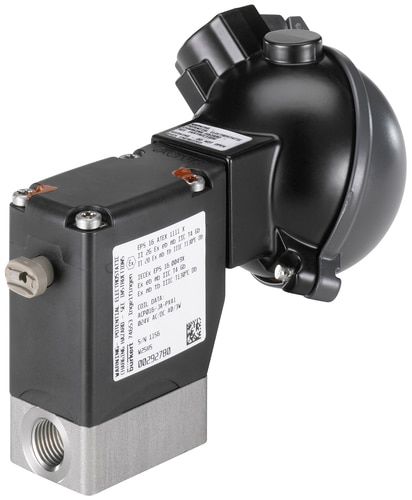

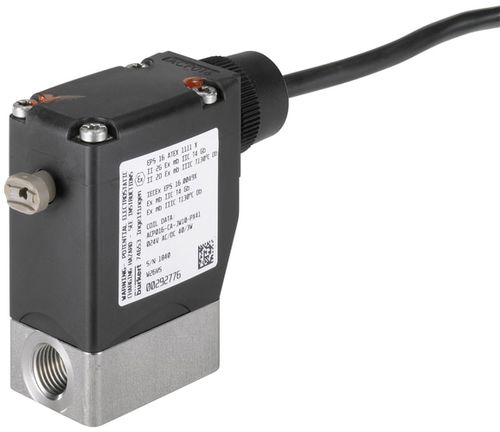

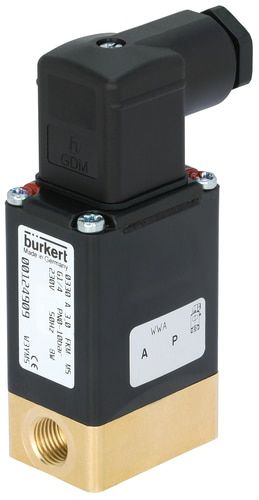

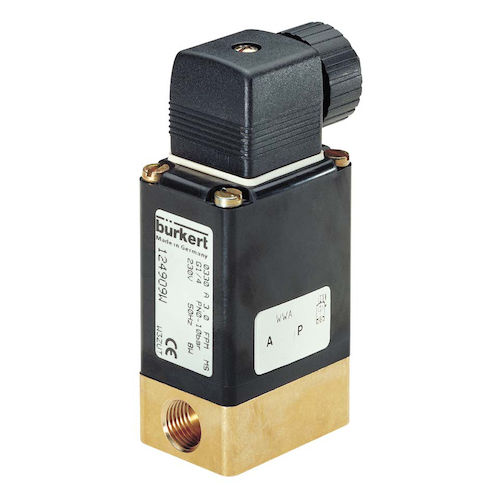

Direct-acting solenoid valve 0330
برند:
BÜRKERT FLUID CONTROL SYSTEMS
مشخصات:
The 0330 valve is a direct-acting, media-separated pivoted armature valve. It is available as a 2/2 and 3/2-way variant. As a 3/2-way variant, it can be used as a distributor or mixing valve. Various diaphragm materials and circuit functions are available depending on the actual application. Brass, stainless steel (316L) and polypropylene bodies are offered. The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media such as aggressive acids and lyes. The 0330 is equipped with manual override for start-up and testing. To reduce energy demands, all the coils can be delivered with electronic power reduction or as an impulse variant. The switching status can be indicated via position feedback as a binary or NAMUR signal.
Maintenance-free pivoted armature technology
Vibration-proof, block screwed solenoid system
Service-friendly, robust manual override
توضیحات:
Control
direct-acting
Ports/positions
2-way
Function
NC, NO
Medium
for water
Body
threaded, NAMUR, rugged, chemical-resistant, brass, stainless steel, IP65, IP67
Other characteristics
diaphragm
DN
2 mm, 3 mm, 4 mm, 5 mm(0.079 in, 0.118 in, 0.157 in, 0.197 in)
Voltage
Min.: 12 VMax.: 230 V
Temperature
Min.: -30 °C(-22 °F)Max.: 90 °C(194 °F)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
