نام محصول:
شیر برقی مستقیم
نام انگلیسی:

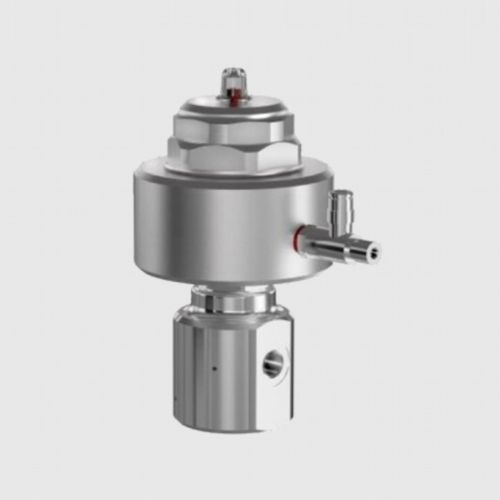

Direct-operated solenoid valve Série 8/100
برند:
ALPHA AUTOMATISMES Sarl
مشخصات:
Series 8/100 – High-pressure solenoid valve for hydrogen, pneumatically operated
2/2-way valve, with piston, direct pressure operated – ATEX
NC – Valve normally closed at rest
Direct pressure operated valve (no pressure differential required)
General :
– For high pressure applications up to 1000 bar
– Operates without differential pressure
– Long service life
– Simple, robust design
– High quality materials
– Reliable, robust sealing elements
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for water, air, for steam, for natural gas, for oxygen, for CO2, for liquified gas, for compressed natural gas, for hydrogen
Body
compact, threaded, rugged, seat, modular, chemical-resistant, waterproof, stainless steel, vertical
Process connection
G 1/4, G 1/2, G 1/8
Other characteristics
switching, high-pressure, ATEX, intrinsically safe, pneumatically-operated, rugged, high-capacity, with seal, heavy-duty, for aggressive media, for hazardous fluids, high-performance, for corrosive fluids, corrosion-resistant, wear-resistant, for explosive atmospheres, with actuator, for sour gas, for process gas, pulse, waterproof, air-operated, piston, chemically inert, variable-flow, compact, chemical-resistant, for compressed gas, IECEx, for hazardous environments, for corrosive environments, for chemicals, for nitrogen, with threaded connection, for filling applications, pulse jet
DN
Min.: 1 mm(0.039 in)Max.: 8 mm(0.315 in)
Voltage
Min.: 12 VMax.: 230 V
Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)
Pressure
Min.: 0 bar(0 psi)Max.: 1,000 bar(14,503.8 psi)
