نام محصول:
شیر برقی مستقیم
نام انگلیسی:

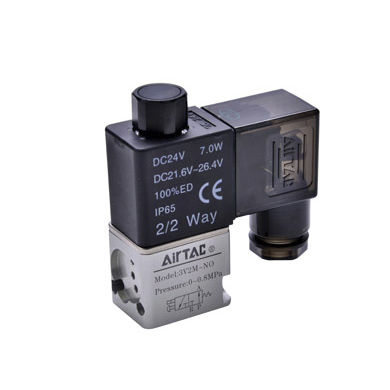

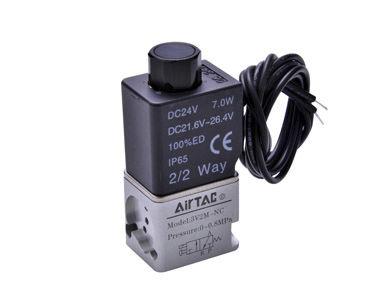

Direct-acting solenoid valve 3V2M
برند:
Airtac Automatic Industrial
مشخصات:
1. Direct acting type and normally closed mode, flexible in direction change.
2. Normally closed and normally open types are optional.
3. Structure in coaxial blanking mode: leakage proof and large air flow.
4. No need to add oil for lubrication.
5. Affiliated manual devices are equipped to facilitate installation and debugging.

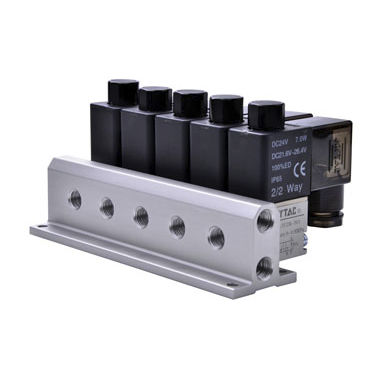

6. Valve needs to be used with the sub-base and allows various connection combinations to save space.
7. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.
8. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.
9. Can adjust the installation direction of special sub-base seal for NO or NC functions.
توضیحات:
Control
direct-acting
Ports/positions
3-way
Function
NC, NO
Medium
air
Other characteristics
coaxial, exhaust
DN
0.125 in
Voltage
Min.: 12 VMax.: 220 V
Temperature
Min.: -20 °C(-4 °F)Max.: 70 °C(158 °F)
Pressure
Min.: 0 psiMax.: 114 psi
