نام محصول:
شیر برقی مستقیم
نام انگلیسی:

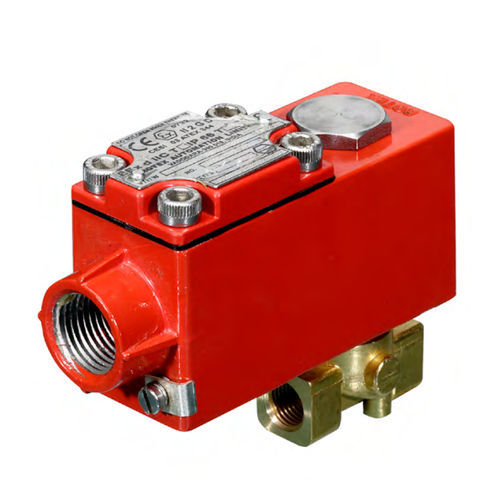

Direct-operated solenoid valve A106
برند:
ACL S.r.l.
مشخصات:
CESI 03 ATEX 344 Extension No. 01/12
(other certifications e.g.EAC, INMETRO, CCOE etc. on request)
VALVE CONSTRUCTION
Seal material NBR – FPM – EPDM
Housing Red colour alloy (painted with epoxy powder)
FEATURES
Maximum allowable pressure PS 100bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: -40°C ÷ +35°C(T6), +50°C(T5), +60°C(T4)
Mounting position with vertical coil above
Manual override
Electroless nickel plating
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for hot water, for steam, for oxygen, fuel oil, for chemical products
Body
IP66, stainless steel, brass
Process connection
G 1/4, G 3/8, G 1/8, NPT 1/2
Other characteristics
ATEX, with seal
DN
0.125 in, 0.25 in, 0.375 in, 0.5 in
Voltage
Max.: 230 VMin.: 12 V
Temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 80 bar(1,160.3 psi)Min.: 0 bar(0 psi)
