نام محصول:

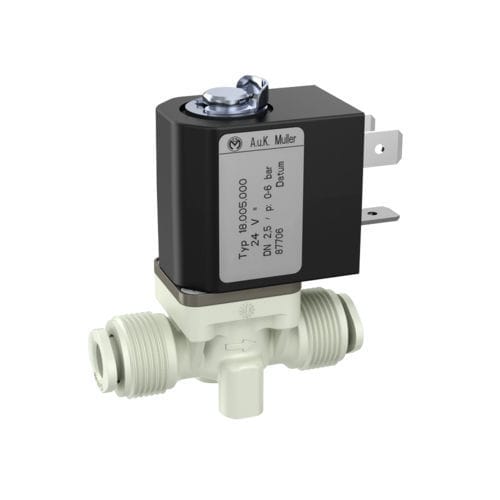

شیر برقی مستقیم
نام انگلیسی:
Direct-operated solenoid valve 18.00x.000
برند:
A. u. K. Müller
مشخصات:
Direct acting 2/2-way solenoid valve of several nominal diameters for use with neutral gases and liquids. This valve is direct acting and normally closed (NC).
Valves of this design are single chamber straight through valves, with threaded tube clamp or push-fit connections at outlet and inlet.
The valve body is made of PPSU, which is suitable for hot water applications.
This valve is designed for continuous operation
(duty cycle 100%).
Electrical operating safety is achieved by using high quality materials of insulation class H.
Applications
Steam cleaners and ironing machines
Hot / cold drink dispensers (espresso machines)
Medical equipment
Characteristics
Long term performance capability
Works from zero pressure
Easy to assemble and service
Coil change without opening of medium circuit, coil can be mounted 4 x 90°
High operating safety through the use of high quality materials and 100% final testing of the products
Technical data
Coil connections flat tap 6,3 x 0,8 mm
Coil connections (MS.040) plug socket, model B-industry form
Insulation class H according to EN 60730
Protection class I according to EN 60730
(for incorporation in class I)
توضیحات:
Control
direct-operated
Ports/positions
2/2-way
Function
NC
Medium
for hot water, for potable water, for gas, for chemical products, for food
Body
threaded, compact, plastic, IP65, straight
Other characteristics
high-pressure
DN
1.5 mm, 2 mm, 2.5 mm(0.059 in, 0.079 in, 0.098 in)
Voltage
12 V, 24 V
Temperature
Max.: 143 °C(289 °F)Min.: 5 °C(41 °F)
Pressure
Max.: 16 bar(232.1 psi)Min.: 0 bar(0 psi)
