نام محصول:
شیر برقی برقی
نام انگلیسی:
Electrically-operated solenoid valve 52
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:

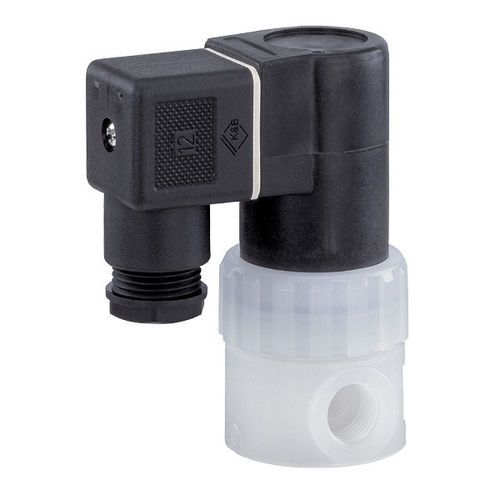

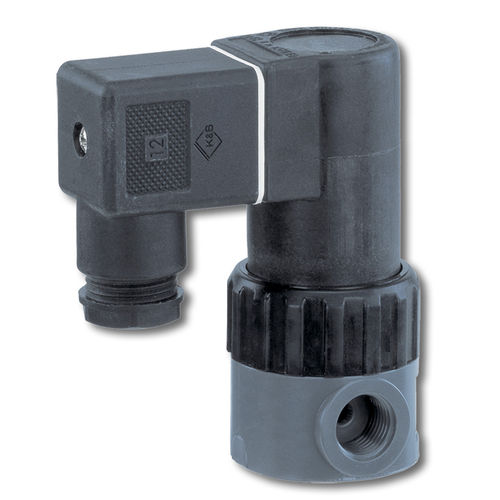

Direct-operated solenoid valve – 52
The GEMÜ 52 Directly controlled 2/2-way solenoid valve has a completely plastic encapsulated coil. The armature is sealed by a bellows made of PTFE backed by an additional safety diaphragm. The valve body is available in various materials and with a straight through or angle valve body design.
Good cleanability
Hermetic separation between medium and actuator
The solenoid can be replaced without removing the valve body from the piping
Connection types: Threaded connection
Connection standards: DIN | ISO
Body materials: PVC-U, grey | PVDF
Conformities: EAC | UL
توضیحات:
Control
direct-operated
Ports/positions
2-way
Medium
for gas
Body
plastic, threaded
Other characteristics
electrically-operated, DIN, safety, diaphragm, bellows
DN
2 mm(0.079 in)
Voltage
Max.: 230 VMin.: 12 V
Temperature
Max.: 100 °C(212 °F)Min.: -20 °C(-4 °F)
Pressure
Max.: 6 bar(87 psi)Min.: 0 bar(0 psi)
