نام محصول:

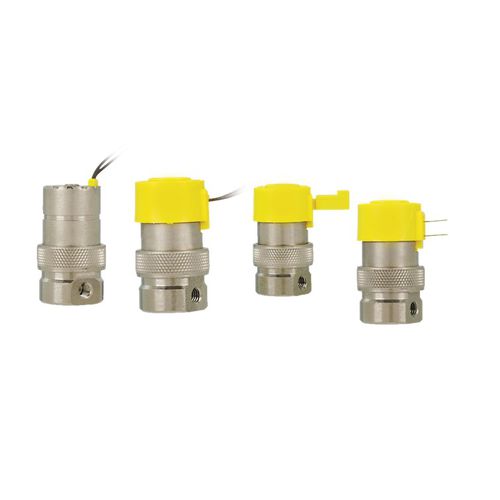

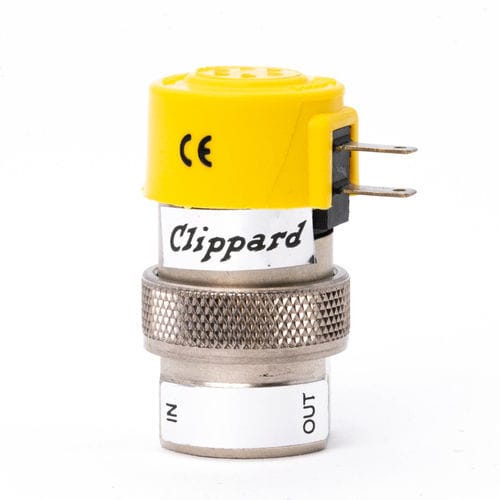

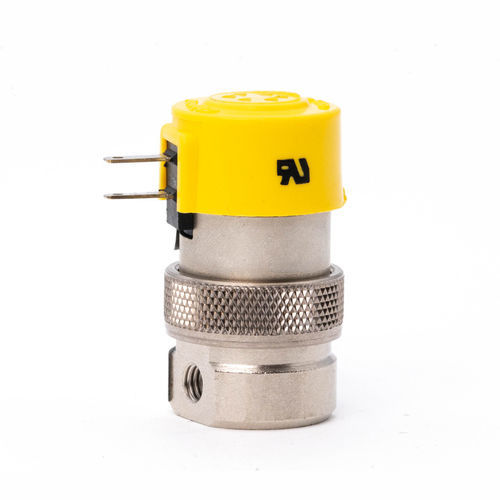

شیر برقی استاندارد
نام انگلیسی:
Standard solenoid valve EV Series – Standard
برند:
Clippard
مشخصات:
2-Way Electronic Valve, Normally-Closed, 24 VDC
Additional Information
Air Flow 0.6 scfm @ 100 psig (17 L/min @ 7 bar)
Air Flow 0.6 scfm @ 100 PSI
Body Material Nickel Plated Brass
Connection Type 0.110″ Terminal Spades
Connector Side Pin
Connector P/N ET-C48 or ET-C120 or 3831-1-PKG
Life Cycles Over 1 Billion
Max PSI 0 – 105 PSI
Medium Air, Gas
Mount Standard In-Line Mount
Mounting #6-32 thd. Mounting Holes
Orifice 0.025″
Poppet Travel 0.007″
Port Size #10-32
Ports 10-32 Thread
Power Consumption .67 Watts
Power Consumption 0.67 Watts
Pressure Range 28″ Hg Vac. to 105 psig
Response Time 5-10 Milliseconds @105 PSI
Response Time 5 to 10 milliseconds (nominal)
Seals Nitrile
Series Standard
Temperature Range 30 – 180 F
Temperature Range 32 to 180°F (0 to 82°C)
Valve Porting 2-Way Normally-Closed
Voltage 24 VDC
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
air
Body
compact, compact, in-line, nickel-plated brass
Other characteristics
standard, high-flow, low-pressure, low-noise, plug
DN
0.025 in
Voltage
6 V, 12 V, 24 V
Temperature
Min.: 30 °F(-1 °C)Max.: 180 °F(82 °C)
Pressure
105 bar(1,522.9 psi)
