نام محصول:
شیر برقی آب
نام انگلیسی:

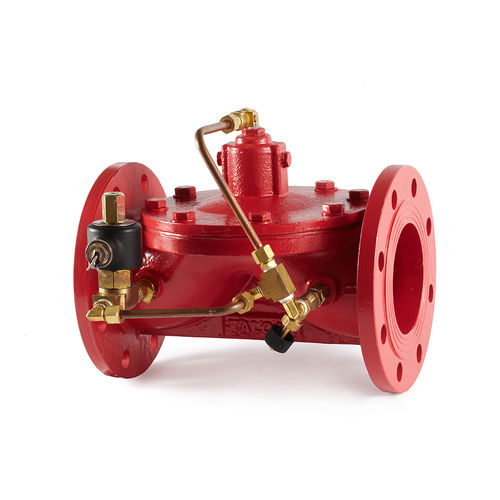

Water solenoid valve SL300
برند:
Taloar
مشخصات:
Sensitive and rapid action
Small volume and light weight
Easy regulation and maintenance
Excellent and reliable sealing performance
Built-in strainer, to prevent the guide piping system from being blocked
Optional check feature

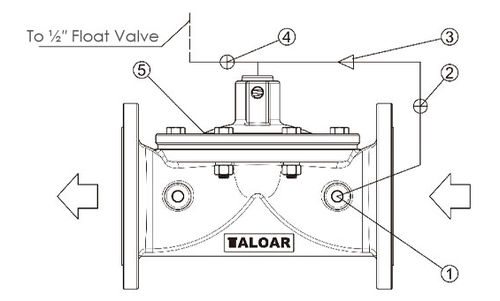

SL300 solenoid control valve mainly controls opening and closing of the valve by receiving the opening or closing signal through the solenoid valve. It consists of a basic valve and an electromagnetic switch. The electromagnetic switch controls the liquid in the air chamber to achieve the purpose of controlling the valve to open and to close.
The standard opening and closing speed control valve can independently control the opening and closing speeds of the valve to avoid the water hammer and vibration common in solenoid valves.
If the optional check feature is selected, when the back pressure is generated, the return fluid will enter the air chamber to close the valve to prevent the fluid from back flow.
Solenoid Valve Parameters
Voltage Range: 110 V, 50~60 Hz, AC or 220 V, 50-60 Hz
State: NC (normally closed) or NO (normally open) (please specify the specific state while ordering)
Body Material: Bronze/Stainless Steel
Please Provide the Following Data When Ordering
Valve figure number/size/pressure grade/connecting end type/pressure regulating range/other optional accessories
Note: In valve installation, it is strongly suggested that sufficient space should be left for easy maintenance in the future. A strainer shall be mounted in front of the valve to prevent foreign matters from blocking the valve.
توضیحات:
Medium
for water
Body
flange, ductile iron
Other characteristics
ISO, standard, electromagnetic, DIN
DN
Max.: 12 inMin.: 2 in
Voltage
110 V, 220 V
Temperature
Max.: 100 °C(212 °F)Min.: 0 °C(32 °F)
Pressure
10 psi, 16 psi, 175 psi, 235 psi(145 psi, 232.1 psi)
