نام محصول:
شیر با فشار بالا

نام انگلیسی:

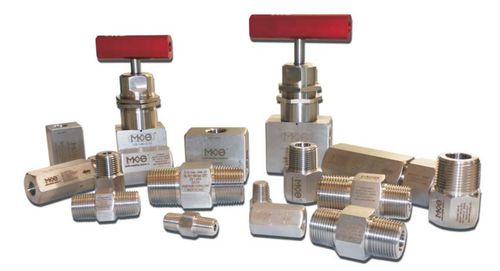

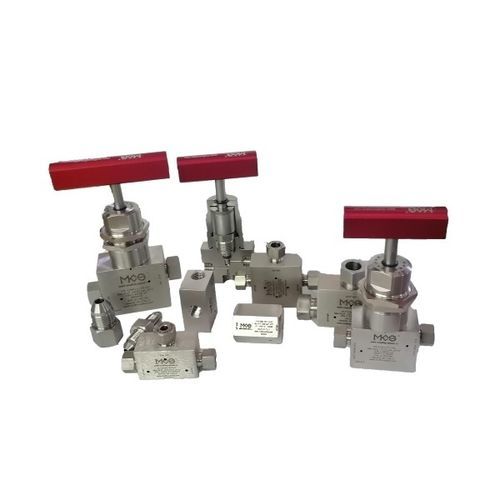

High-pressure valve VS series

برند:
Multi-coupling-system

مشخصات:
MCS ® High-Pressure valves were created due to the need to offer high and very high pressure industries with a very high quality product, whose performance is higher than the average.

GThanks to their innovatory design and to the introduction of high-quality and high-resistance materials, the aforesaid valves allow not only to fill, but also to carry out the delivery under pressure with nominal diameters being double compared with the valves that are normally on the market for the pressure range up to 4200 bar (60,000 psi).

Every valve can be actuated by means of a pneumatic double-effect actuator, which is normally open or normally closed.

توضیحات:
Type
needle

Operation
manual, pneumatically-operated, hydraulic

Function
shut-off, purge

Media
for water, for oil

Body$
threaded

Applications
industrial, for pump, for compressors, for actuators, for cleaners

Material$
stainless steel

Number of channels
2/2-way, 3/2

Fluid specification
for low-viscosity fluids, for fluids with lubricating properties, for medium-viscosity products

Associated function
vent, unloading

Other characteristics
waterproof, high-pressure, normally open, with actuator, single-acting, pneumatic piston, with threaded connection, with internally-threaded connectors, for nitrogen, for hydrogen

Pressure
Min.: 0 bar(0 psi)Max.: 4,200 bar(60,915.8 psi)

Temperature
Min.: -20 °C(-4 °F)Max.: 80 °C(176 °F)
