نام محصول:
شاخه
نام انگلیسی:

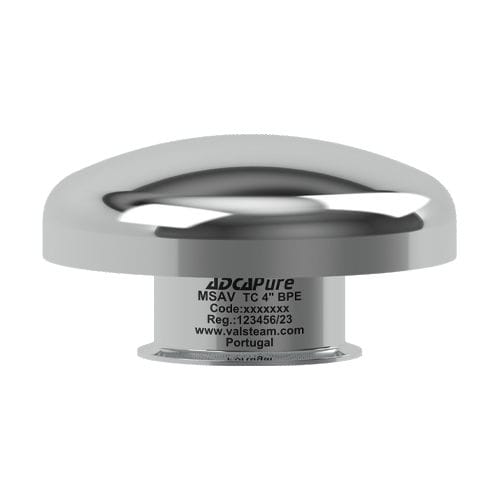

Vent plug MSAV
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:
The ADCAPure MSAV series of mushroom style air vents are used in atmospheric tanks to prevent contamination from foreign matter via the vent connection. The device is fully manufactured from 316L stainless steel with a rounded mushroom cover, perforated barrier and clamped connections.
Complete 316L stainless steel construction.
STANDARD SURFACE FINISH
Internal wetted parts: ≤ 0,76 µm Ra – SF3. External: Satin bead blast finish – 1,6 μm Ra. Other surface conditions see TIS.GIA – General information ADCAPure.
Contamination prevention in atmospheric tanks and others.
Assembling and packaging in a clean room certified according to ISO 14644-1. The product is end capped and sealed with recyclable thermo-shrinkable plastic film, to avoid contamination.
Vertical installation.
توضیحات:
Form
dome
Type
female
Material
plastic, bead, stainless steel
Function
vent, connection, finish
Product applications
air, cover, parts, construction, device, for tanks, barrier, film
Diameter
Min.: 40 mm(1.575 in)Max.: 150 mm(5.906 in)
Operating temperature
180 °C(356 °F)
