نام محصول:
شاخه گرد
نام انگلیسی:

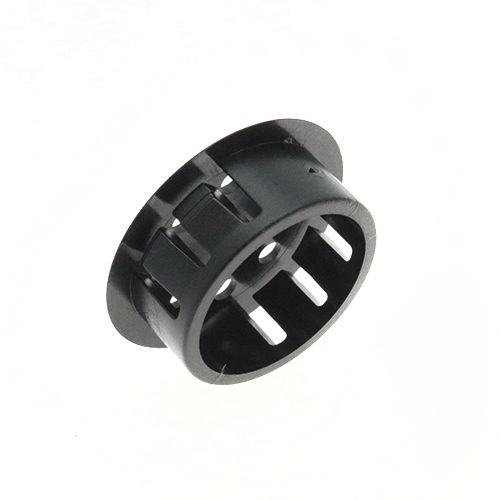

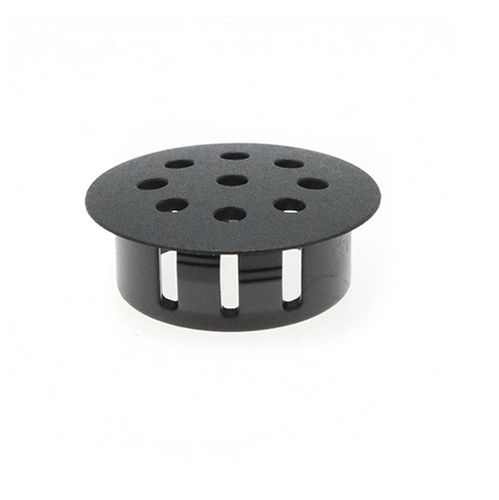

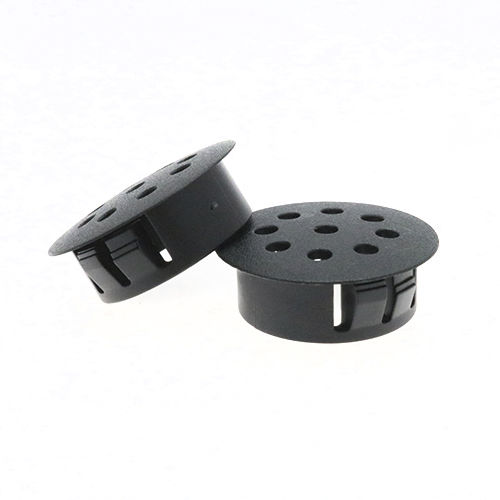

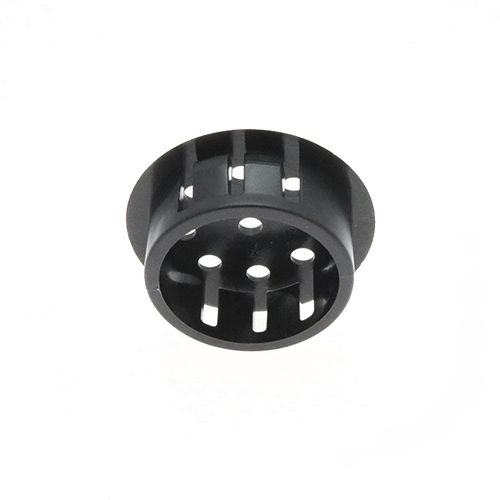

Round plug VENT002
برند:
Vital Parts ltd
مشخصات:
Our range of Vent Plugs are manufactured from a heat stabilised Nylon 6/6 and are complete with a UL94V-2 flammability rating. Nylon or ‘Plastic Vent Plugs’ as they can be referred to, are offered either with or without a pre-installed Polyurethane filter that is capable of filtering particles of 30 micron or larger, limiting the ingress of contaminating elements. Typically a Vent Plugs is installed to allow the passage of air for both ventilation or heat dissipation purposes such as within a server cabinet, and are easily installed by hand thanks to its lock-in design. Each size that we offer comes with a thin head that can sit flush to your application, with an approximate thickness of just 1.6mm (may vary according to size).
We stock these Vent Plugs in a wide variety of hole sizes between 12.7mm (1/2″) and 101.6mm (4″) to suit most industry requirements (for filtered versions please see -F part numbers). To view all currently available product sizes and colours, or to request a bulk quotation on a large quantity, please see the table below.
Key Product Features:

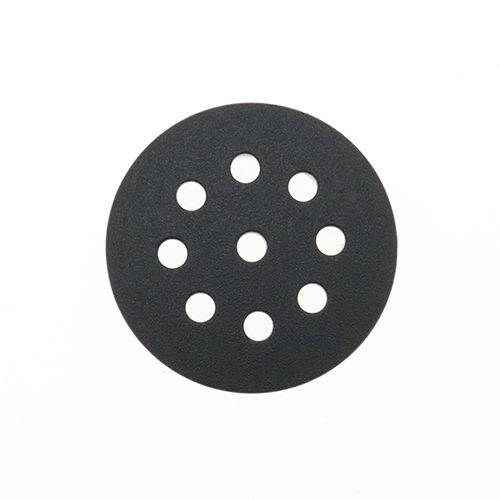

Manufactured from high quality Nylon 6/6 and with or without Polyurethane filter
Thin head and fixing clips for flush fitment
UL94V-2 flammability rated
*All part numbers with -F are pre-fitted with a filter
Commonly Used For:
To dissipate heat or air from internal components
توضیحات:
Form
round
Type
male
Material
nylon, polyurethane
Function
vent, ventilation, filter, for ventilation
Product applications
industry, bulk
Diameter
Max.: 101.6 mm(4 in)Min.: 12.7 mm(0.5 in)
Operating temperature
Max.: 105 °C(221 °F)Min.: -40 °C(-40 °F)
Thickness
Max.: 6.4 mm(0.3 in)Min.: 3.2 mm(0.1 in)
