نام محصول:

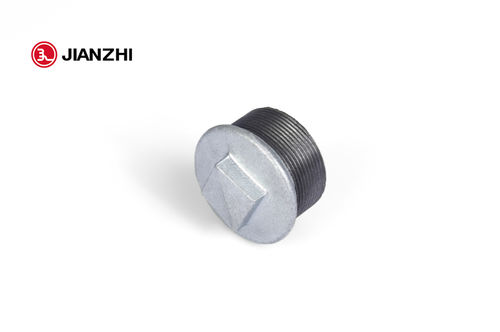

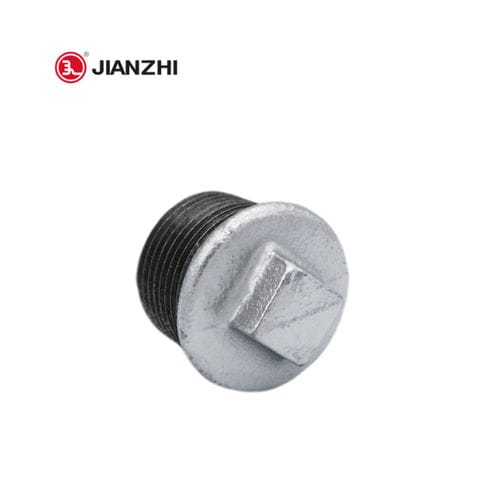

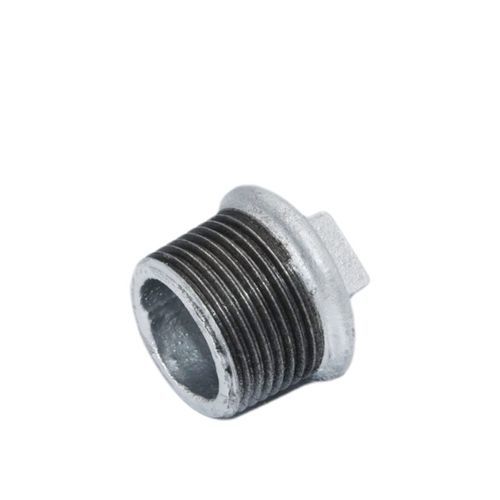

شاخه گرد
نام انگلیسی:
Round plug Fig.290
برند:
Hebei Jianzhi Casting Group Co., Ltd.
مشخصات:
Cast Iron Pipe Fittings Galvanized Plug Beaded
Maximum Pressure: –
25 BAR (363PSI) (2.5MPA) CLASS 150
Tensile Strength: –
350MPA
Suitable Applications: –
Water, Oil, Gas, Petro-Chemical
Product Description
Do you know?
EN 10226 standard asks the thread truns of internal thread must be ±1 1/4 — ±1 1/2, Jianzhi keep the internal thread below ±1
Product Parameters
Standard: – EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: – EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： – PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： – UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: – 25 BAR (363PSI) (2.5MPA) CLASS 150
Tensile Strength: – 350MPA
Hardness: – HB150 (Brinell)
Elongation Rate: – 10%
Suitable Applications: – Water, Oil, Gas, Petro-Chemical
Material: – Malleable Iron
توضیحات:
Form
round
Type
threaded
Material
iron, cast iron, galvanized
Function
thread, work
Product applications
oil, pipe, internal thread, applications, for water, gas, bar
Other characteristics
pressure
Diameter
Max.: 100 mm(3.937 in)Min.: 8 mm(0.315 in)
Operating temperature
200 °C(392 °F)
