نام محصول:
سینی کابل سبد سیم
نام انگلیسی:
Wire basket cable tray Rejiband Rapide
برند:
Pemsa Cable Management, S.A.
مشخصات:

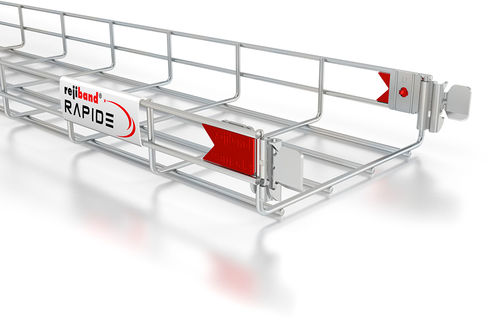

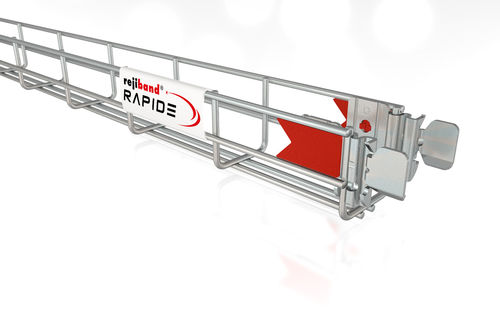

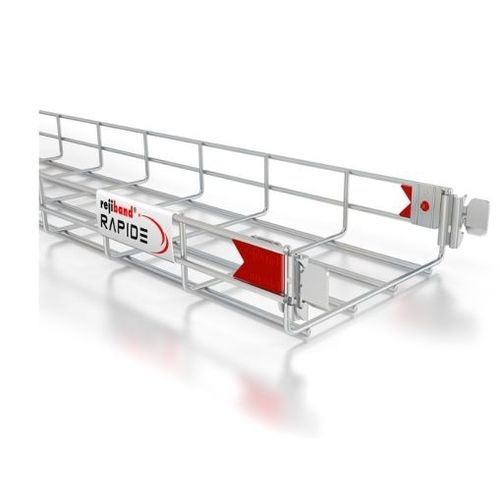

Wire mesh tray made of steel with quick-connect Click system and rounded safety edge for the support and management of cables. The Rejiband® Rapide Cable Tray is made up of wire mesh rods that provide high strength and elasticity. Easy to assemble, thanks to its flexibility and its quick-connect Click system, it allows the connection between sections of trays without the need for screws, which means savings in material and labour costs. Manufactured according to international standard IEC 61537. It is distributed in different sizes and in several Protection Systems.
High resistance, flexibility and adaptable to each project providing a saving of more than 30% in the installation.
Rounded safety edge that prevents damage to the cables and harm to the installer.
Rapid connection system with pre-fitted couplers reduces installation time by 40%.
Electrical continuity guaranteed according to standard IEC61537.
Flange heights of 60 or 100 mm and widths of 60, 100, 150, 200, 300, 400, 450, 500 and 600 mm with a wide range of accessories.
Rapid installation of wire mesh trays for the Support, management and distribution of cables in Electrical and/or telecommunications installations in: Civil Works, Tunnels, Car Parks, Public Buildings, Shopping Centres, Major Infrastructures, Airports, Underground and Railway, Tertiary sector and industrial applications: Naval, Petrochemical, Textile, Chemical and Food.
توضیحات:
Material
wire basket, galvanized steel
Other characteristics
mesh
Width
Min.: 60 mm(2.36 in)Max.: 600 mm(23.62 in)
Height
60 mm, 100 mm(2.36 in, 3.94 in)
