نام محصول:
سیلندر کوتاه
نام انگلیسی:
Short-stroke cylinder 441
برند:
ASCO
مشخصات:

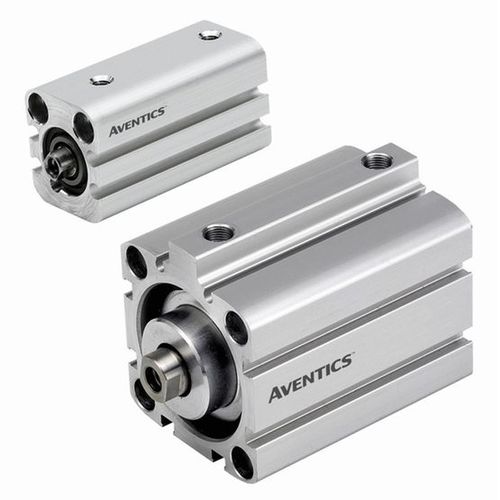

The AVENTICS Series 441 is a line of robust, compact short-stroke pneumatic cylinders. The devices have a durable single/double rod and anti-rotation device for extended service life. The cylinders are suitable for automotive, case packing, dust collector system, packaging, press room, and metal stamping applications.
Specifications
FunctionThrough Rod, Single Acting, Non Rotation, Double Acting, Single Rod
Standards / RegulationsATEX Zone 1-21, ATEX Zone 2-22
Body MaterialLight Alloy
Operating EnvironmentHazardous, Outdoor, Indoor
Features
Handles lubricated and unlubricated air
Wide range of options
Equipped for magnetic position detectors
توضیحات:
Type
pneumatic
Configuration
double-acting, single-acting
Protection class
robust
Other characteristics
compact, short-stroke, double, wide, ATEX
Stroke
100 mm(3.937 in)
Bore
Max.: 100 mm(3.94 in)Min.: 8 mm(0.31 in)
Pressure
Max.: 10 bar(145.04 psi)Min.: 0 bar(0 psi)
Ambient temperature
Max.: 70 °C(158 °F)Min.: -20 °C(-4 °F)
