نام محصول:
سیلندر کارتریج
نام انگلیسی:

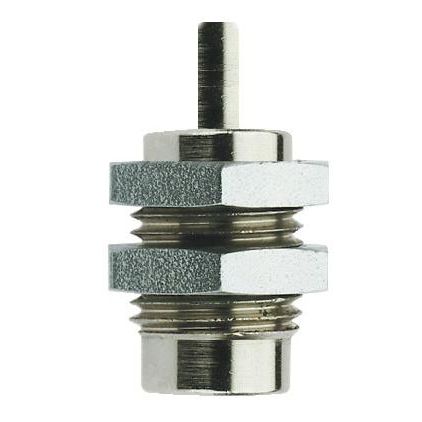

Cartridge cylinder CA series
برند:
AIGNEP
مشخصات:
Component Parts and Materials
1 Zinc-plated steel Nut
2 Brass Bush
3 Steel Spring
4 Steel Piston rod AISI 303
5 Polyurethane Rod seal
6 Nickel plated brass Shape body
7 Zinc-plated steel Locking screw
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Single-acting, Threaded piston rod and No-threaded piston rod.
توضیحات:
Type
pneumatic
Technology
with piston rod
Configuration
single-acting
Material
steel, brass
Other characteristics
threaded, cartridge
Stroke
5 mm, 10 mm, 15 mm(0.197 in, 0.394 in, 0.591 in)
Pressure
2 bar, 7 bar(29.01 psi, 101.53 psi)
Rod diameter
6 mm, 10 mm, 16 mm(0 in, 0 in, 1 in)
Ambient temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
