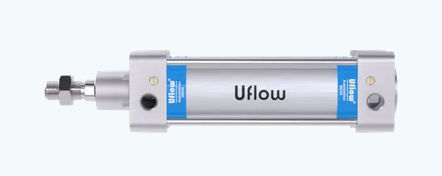

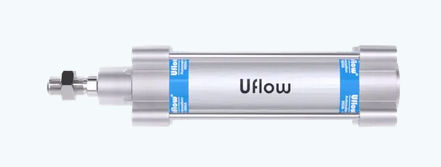

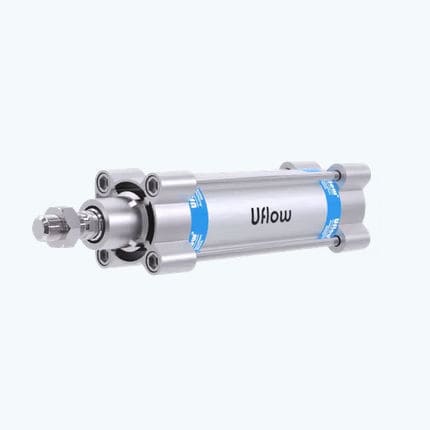

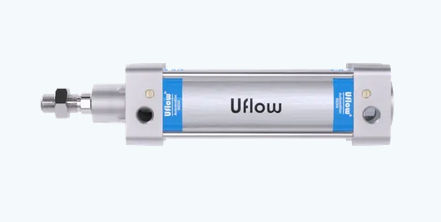

نام محصول:
سیلندر پنوماتیک
نام انگلیسی:
Pneumatic cylinder CS4
برند:
UFLOW AUTOMATION
مشخصات:
Materials of Construction: Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular),
FKM (High temperature)
Mountings: Foot Mounting, Front / Rear Flange, Maie Clevis, Female Clevis,Center Trunnion, Front Trunnion, Rear Trunnion
Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye
Features
Adjustable cushioning at both ends with elastomer pads.
Wide varieties of mountings
Optional – Non corrosive stainless Steel piston rod and piston rod look nut (SS304)
Optional – High temperature (Viton seals) 150°C max.
توضیحات:
Type
pneumatic
Technology
piston, tie-rod
Material
steel, stainless steel, aluminum, brass
Norms
ISO 15552
Applications
high-temperature
Other characteristics
flange, trunnion
Stroke
Max.: 500 mm(19.685 in)Min.: 25 mm(0.984 in)
Bore
Max.: 250 mm(9.84 in)Min.: 32 mm(1.26 in)
Pressure
Max.: 10 bar(145.04 psi)Min.: 0.5 bar(7.25 psi)
Rod diameter
Max.: 50 mm(2 in)Min.: 12 mm(0 in)
Force
Max.: 42,411 NMin.: 145 N
Ambient temperature
Max.: 70 °C(158 °F)Min.: -10 °C(14 °F)
Fluid temperature
Max.: 150 °C(302 °F)Min.: 5 °C(41 °F)
