نام محصول:
سیلندر پنوماتیک
نام انگلیسی:

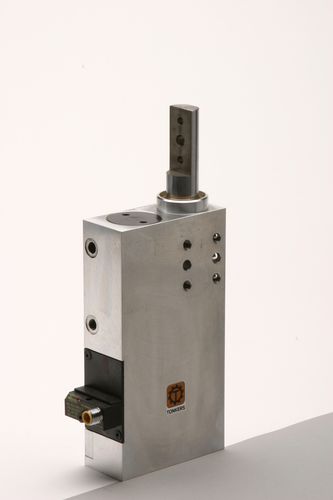

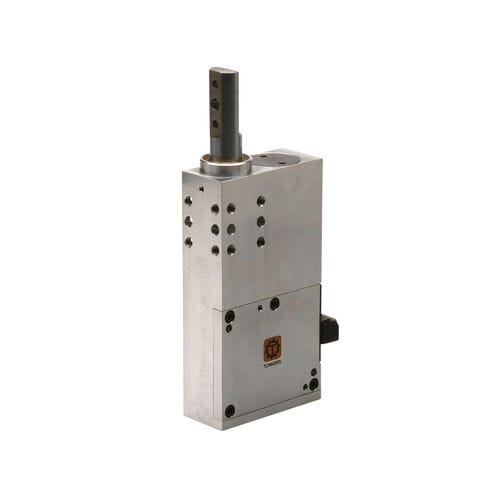

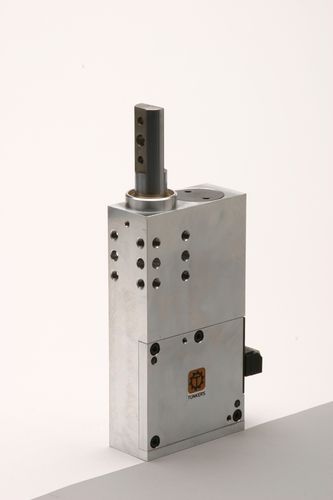

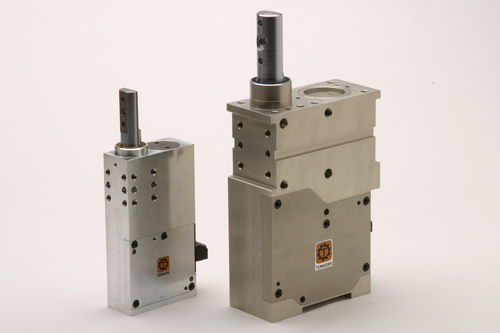

Pneumatic cylinder SZV.1 40
برند:
TÜNKERS
مشخصات:
09. LINEAR CYLINDER SZV.1 40…
Linear unit with integrated pneumatic cylinder which activates the push rod via a toggle-joint mechanism, self-locking, size 40. Flat housing in monoblock design of high-strength aluminium material, high thrust and tensile forces of up to 4 kN in the end position due to toggle-joint transmission. Double-guided push rod in bronze/graphite bushings, mounting options on all sides and base. Integrated end position sensing in cartridge design. Option: – Hand feed for manual loading and pneumatic closing
توضیحات:
Type
pneumatic
Technology
double-rod, with guided piston rod
Material
aluminum
Other characteristics
guided, flat, cartridge, self-locking
Force
Max.: 5 kNMin.: 0 kN
