نام محصول:
سیلندر پنوماتیک
نام انگلیسی:

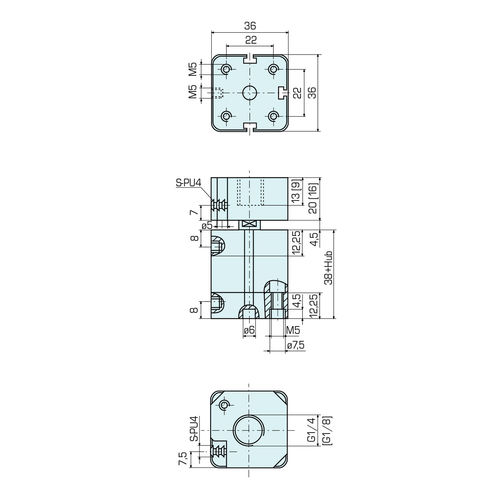

Pneumatic cylinder HZ20 series
برند:
Sommer-Technik
مشخصات:
is a simple and reasonably priced component with a lot of automation.
It is torsion-proof and has a universal holder for all our suction cup models with a 1/8″ or 1/4″ outside fitting (SG…, SH…, SO…, and SR…).
Version “V” has an integrated vacuum ejector.
For supervisory purposes the position of the magnet piston can be requested via the HZ20-RS reed switches. These can each be fixed in the case groove.
Function: – – Double acting, torsion-proof
Material housing: – – Anodized aluminum
(suction holder: aluminium)
توضیحات:
Type
pneumatic
Technology
magnetic piston
Configuration
double-acting
Material
anodized aluminum
Applications
for lifting applications
Other characteristics
integrated, vacuum
Stroke
Max.: 100 mm(3.937 in)Min.: 5 mm(0.197 in)
Bore
20 mm(0.79 in)
Pressure
Max.: 10 bar(145.04 psi)Min.: 4 bar(58.02 psi)
Force
125 N
Ambient temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
