نام محصول:
سیلندر پنوماتیک
نام انگلیسی:

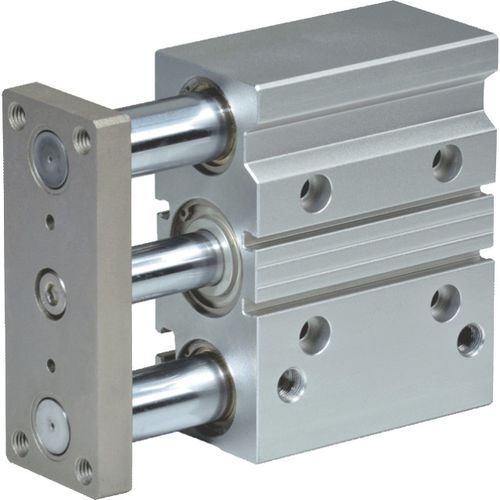

Pneumatic cylinder FDG series
برند:
Mader
مشخصات:
Guided cylinder type FDG with plain bearing
Guide:
Plain bearing
Construction type:
Piston rod cylinder
Cushioning:
Elastic cushionung on both sides
Position sensing:
for proximity switch in T-slot
Operating medium:
Filtered, dried air, lubricated or non-lubricated
Mounting position:
arbitrary
Mounting type:
Through-hole, female thread
Material of yoke plate:
Spheroidal graphite cast iron
Material of seals:
NBR
Price information:
Due to price increases on the raw materials market, some items include a surcharge
توضیحات:
Type
pneumatic
Technology
piston, cylinder
Configuration
double-acting
Material
anodized aluminum, cast iron
Other characteristics
guided
Stroke
Min.: 10 mm(0.394 in)Max.: 250 mm(9.843 in)
Pressure
Min.: 1 bar(14.5 psi)Max.: 10 bar(145.04 psi)
Rod diameter
Min.: 12 mm(0 in)Max.: 25 mm(1 in)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 70 °C(158 °F)
