نام محصول:
سیلندر فرمان
نام انگلیسی:
Steering cylinder DE Series
برند:
BELL S.R.L.
مشخصات:

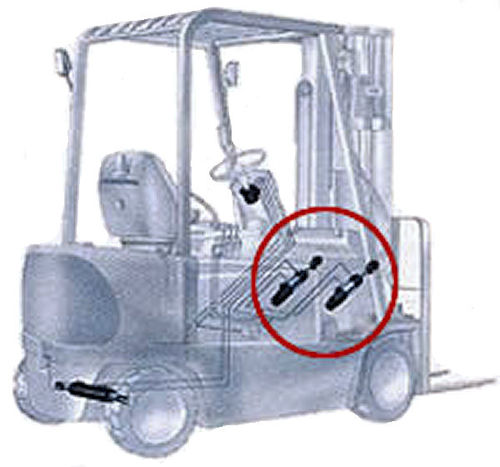

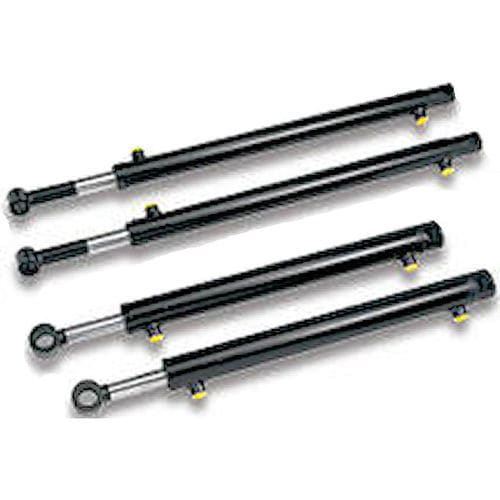

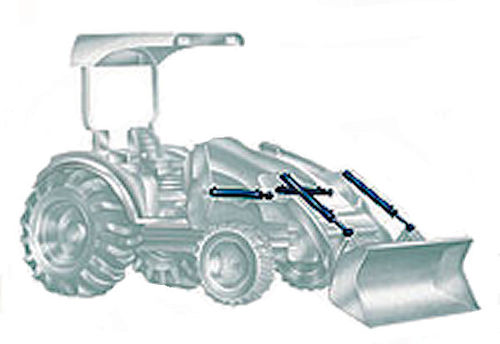

The hydraulic actuators of the DE Series are designed for agricultural vehicles, earth moving vehicles and forklifts
We manufacture double acting balanced hydraulic lifting cylinders with front hitch. Ideal for agricultural vehicles, earthmoving and forklifts.
The hydraulic actuators automate the entire driving process, by minimizing the human interaction with the machine. The hydraulic cylinders supply controlled energy to the driving system, so that the driver can turn the steering wheels through a minimal effort in medium speed conditions. This effort is considerably reduced even when the vehicle is moving slowly or is stationary. The hydraulic power of the actuator ease the mechanical operation of the machine, giving an optimal output in terms of linear, oscillatory or rotary movement.
Front hitch lifting hydraulic cylinder DE Series: main features
Electro-upset stem or from chromed bar friction welded
Rod guide systems in treated metal or with applied rings
Cold extruded barrel
ASTM B117 96h corrosion resistant chrome surface
Hardened monolithic stem
Auto-Venting System
Low friction seals
Low friction guides
Designed to position sensors
توضیحات:
Movement
rotary
Type
hydraulic
Technology
with piston rod
Configuration
double-acting
Applications
for lifting applications, for construction equipment, for vehicles, for forklift trucks, steering
Other characteristics
standard, high load capacity, corrosion-resistant
Stroke
Max.: 140 mm(5.512 in)Min.: 0 mm(0 in)
Bore
50 mm, 60 mm, 80 mm(1.97 in, 2.36 in, 3.15 in)
Pressure
200 bar(2,900.75 psi)
Rod diameter
60 mm, 70 mm, 92 mm(2 in, 3 in, 4 in)
Fluid temperature
Max.: 90 °C(194 °F)Min.: -30 °C(-22 °F)
