نام محصول:

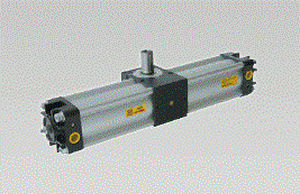

سیلندر دوار
نام انگلیسی:
Rotary cylinder WR series
برند:
Waircom
مشخصات:
Rotary cylinders series “WR” are fit to transform the piston straightaway motion into rotative motion by means of the coupling between rack and pinion. In the standard version, rotary cylinders series “WR” can be supplied with magnetic sensors and with rotation angle adjustment.
توضیحات:
Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Material
anodized aluminum
Other characteristics
standard
Bore
Max.: 125 mm(4.92 in)Min.: 32 mm(1.26 in)
Pressure
Max.: 10 bar(145.04 psi)Min.: 1 bar(14.5 psi)
Force
100 N, 120 N, 200 N, 250 N, 300 N
Torque
Max.: 51 Nm(37.616 ft.lb)Min.: 1.73 Nm(1.276 ft.lb)
Rotation angle
90 °, 180 °, 270 °, 360 °
Ambient temperature
Max.: 80 °C(176 °F)Min.: 0 °C(32 °F)
