نام محصول:
سیلندر دوار
نام انگلیسی:

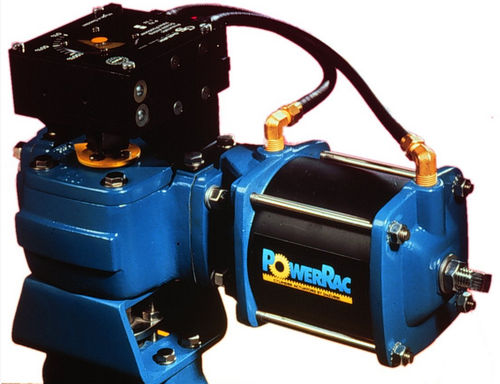

Rotary cylinder PowerRac®
برند:
DeZURIK
مشخصات:
Design Features:The rack and pinion design of PowerRac® Actuators provides high-operating torque for accurate control in modulating services, and high opening torque for on/off services. The unique square collet coupling rigidly clamps the drive pinion to the valve shaft, eliminating backlash in the drive connection. Positioners are solidly mounted on the actuator housing with a square nut, feeding exact valve position directly to the positioner. The modular design and compact size allow the actuator to be close coupled to the valve. Standard ISO bolt circle allows PowerRac® Actuators to be used on all DeZURIK quarter turn valves. Double-acting or fail-safe spring-return cylinder options are available. PowerRac Actuators have a Lifetime Warranty.
توضیحات:
Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Configuration
double-acting, spring-return
Other characteristics
compact
