نام محصول:

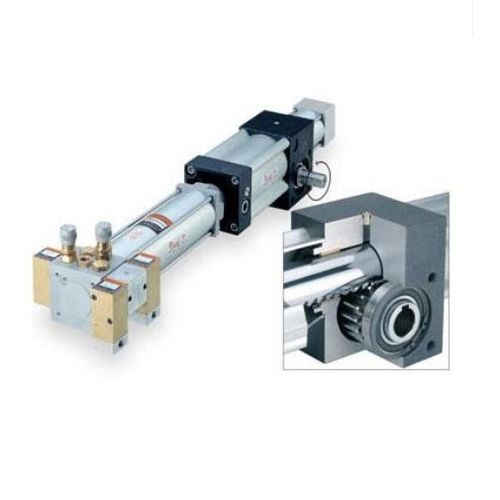

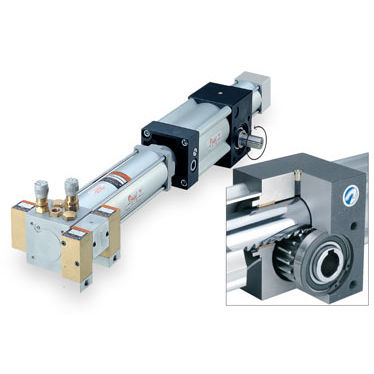

سیلندر دوار
نام انگلیسی:
Rotary cylinder UCR series
برند:
Bonesi Pneumatik s.r.l.
مشخصات:
The UCR assemblies are devices consisting of three elements:
1. The US series units with different combination.
2. Connecting interface.
3. Pinion gear-rack that transforms the straight way motion into rotary motion with set rotary angles.
AVAILABLE REGULATIONS as for US units, both in thrusting and in pulling, available functions of adjusted stroke, of SKIP and STOP valves.
CONSTRUCTIVE FEATURES
Unit US standard
Connection interface in anodized aluminium and cadmium plated steel
Pinion gear-rack group in C40 UNI 2954 steel
Central body in aluminium and bush for the rack guide
توضیحات:
Movement
rotary
Type
hydro-pneumatic
Technology
rack-and-pinion
Stroke
3.5 mm, 4.7 mm, 6.5 mm(0.138 in, 0.185 in, 0.256 in)
Bore
50 mm, 80 mm, 100 mm, 125 mm(1.97 in, 3.15 in, 3.94 in, 4.92 in)
Pressure
7 bar(101.53 psi)
Ambient temperature
Max.: 70 °C(158 °F)Min.: -20 °C(-4 °F)
