نام محصول:

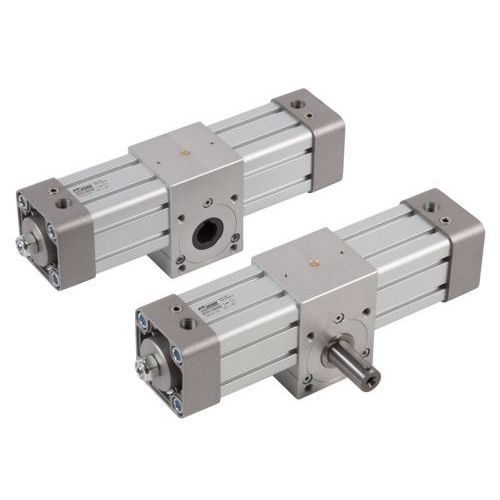

سیلندر دوار
نام انگلیسی:
Rotary cylinder RY
برند:
Airwork Pneumatic Equipment
مشخصات:
– Exclusive rack regulating system to reduce the pinion clearance after a continuous usage
– Angle regulating system (-5°/+5°) to guarantee maximum usage precision
– Excellent axial load values and torque applicable on the pinion
– Special treatment of the pinion to obtain the maximum mechanical resistance
Airwork rotary cylinders are engineered in order to transform the rectilinear motion, typical of the pneumatic cylinders, into a rotating motion equipped with torque.
They are supplied with pneumatic cushioning and the angle of spin can be adjusted of about 10°.
A special regulation, by means of guide, reduces the clearance between pinion and rack.
It’s possible to have a custom rotation if required.
توضیحات:
Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Configuration
double-acting
Material
steel, aluminum
Protection class
waterproof
Applications
industrial, for the automotive industry, for OEM
Other characteristics
precision, custom, with adjustable cushions, position-sensing, repairable, backlash-free
Stroke
Min.: 32 mm(1.26 in)Max.: 125 mm(4.921 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145.04 psi)
Force
Min.: 100 NMax.: 300 N
Torque
Min.: 1.2 Nm(0.885 ft.lb)Max.: 51 Nm(37.616 ft.lb)
Rotation angle
90 °, 180 °, 270 °, 360 °
