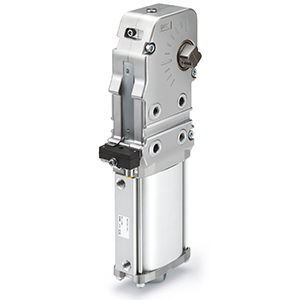

سیلندر بستن – SMC – Clamping cylinder CKZ5T

نام محصول:
سیلندر بستن

نام انگلیسی:
Clamping cylinder CKZ5T

برند:
SMC

مشخصات:
Power Clamp Cylinder – CKZ5T

Designed to clamp anywhere

Minimise the required space – Just 343 mm of length and 131.2 mm of width (Ø 63)

Reduce the moment of intertia in your robot arm – As low as 3.3 kg (Ø 63)

Rely on it – Clamping force up to 4000 N.

And much more

Bore sizes (mm): 50, 63

Spatter-proof construction

9 types of arm opening angles available: 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135°

Turck and P&F proximity sensors available.

توضیحات:
Type
pneumatic

Configuration
double-acting

Protection class
robust

Applications
clamping

Bore
50 mm, 60 mm(1.97 in, 2.36 in)

Pressure
Min.: 0.3 MPaMax.: 0.9 MPa

Force
Min.: 0 NMax.: 4,000 N

Torque
800 Nm, 1,500 Nm(590.05 ft.lb, 1,106.343 ft.lb)

Ambient temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)

Fluid temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
