نام محصول:
سیستم پمپاژ فاضلاب

نام انگلیسی:
Wastewater pumping system BioCut

برند:
Vogelsang

مشخصات:
THE UNIVERSAL PUMP SYSTEM

Cost-effective pumping thanks to optimally coordinated components

Reliable conveying of a wide range of challenging media

Separation of heavy material and treatment of disruptive matter before the pump

Compact design and minimal space requirements

Service and maintenance can be performed quickly and easily on site

DESIGN AND FUNCTION OF THE PUMP SYSTEM BIOCUT

How the pump system BioCut works

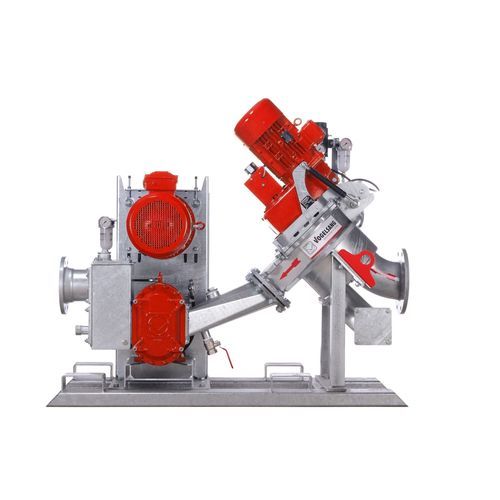

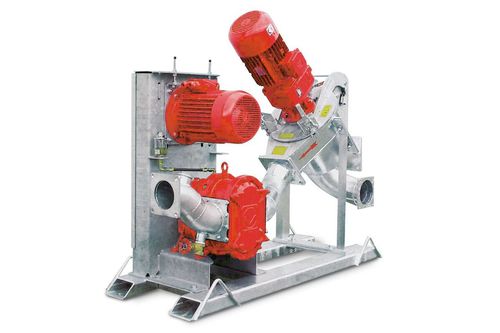

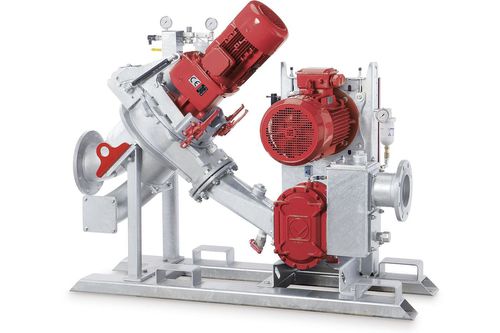

The BioCut is an efficient pump system for reliable and cost-effective pumping of heterogeneous media containing heavy material and disruptive matter. It consists of a self-priming rotary lobe pump from the VX series combined with a special type of construction of the tried-and-trusted wet grinder RotaCut – with both optimally coordinated and arranged to one another. The rotary lobe pump draws the medium – even out of a pit, if necessary – through the RotaCut. The RotaCut then separates out foreign matter (stones, metal parts etc.) due to their size or weight. During maintenance work, this foreign matter can then be removed through the cleaning port. Light solid matter and disruptive matter, such as fibers, wood etc., are drawn along in the flow of fluid to the cutting screen, where they are cutted and mixed with the fluid. This way, the pump system BioCut turns a heterogeneous fluid into a pumpable, homogeneous suspension. This suspension then reaches the rotary lobe pump on as short a route as possible.

توضیحات:
Fluid
for wastewater

Operation
electric

Priming
self-priming

Technology
centrifugal

Mobility
stationary

Domain
industrial

Flow
25 m³/h, 30 m³/h, 40 m³/h, 98 m³/h(882.86667 ft³/h, 1,059.44 ft³/h, 1,412.58667 ft³/h, 3,460.83734 ft³/h)

Pressure
4 bar(58.015 psi)

Power
Min.: 4 kW(5.44 hp)Max.: 22 kW(29.91 hp)
