نام محصول:
سیستم نصب PV سقف کاشی

نام انگلیسی:

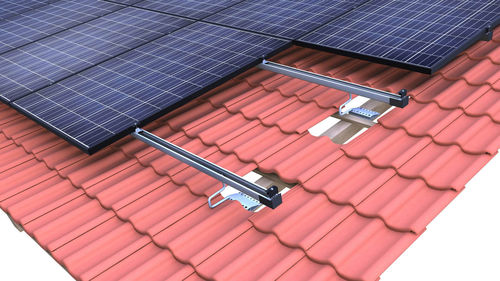

Tile roof PV mounting system top-fix

برند:
novotegra GmbH

مشخصات:
Clamping system with modules installed in portrait

Components usable across different roof types

Module landscape installation possible with cross layer system

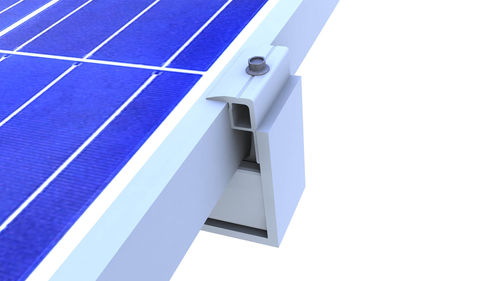

Only two clamps for all frame heights in blank and black anodized

Your benefits

Three-way adjustable roof hook to level out uneven roofs, for different tile strenghts and shapes

Quick mounting from above with easily graspable components

Narrow tile gap

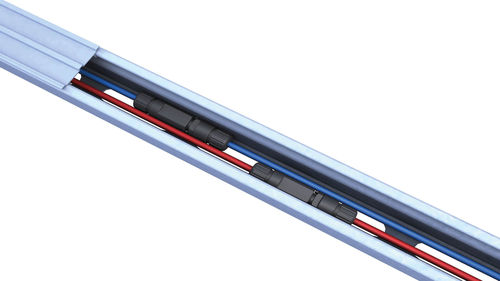

The C-rail also acts as a cable channel

More information about the tile roof mounting system

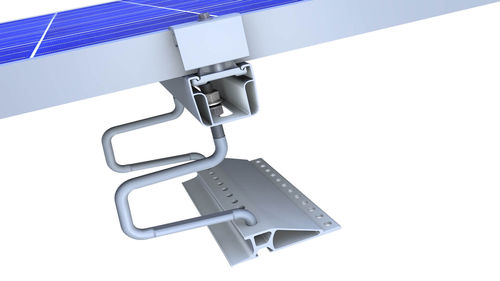

Our roof hook sets from the novotegra family are ideal for roof attachment when mounting modules on tile roofs. The various sets consist of a base profile and a bracket which is screwed into the base profile. Because they are three-way adjustable, the roof hook sets are perfectly adaptable to any tile roof. This way you can always achieve a homogenous module field, even on uneven roofs. Whether you choose a large base profile with a second bracket for heavy snow loads or the flex roof hook set for light loads − we always have a simple, stable and flexible solution for your tile roof.

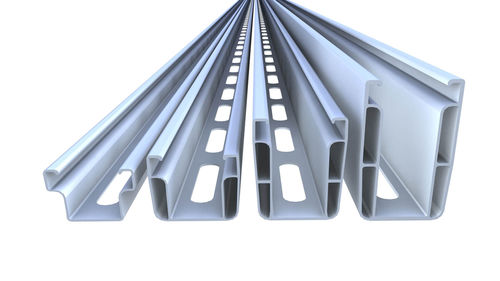

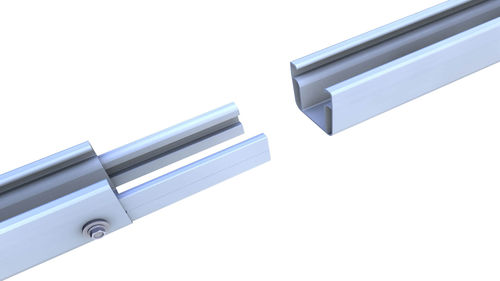

C-rails are always mounted using the same principle: The classic screw connection with a locking nut ensures a quick, strong and permanently reliable connection for both single-rail and cross-rail connections. At the same time, the interior of the rail acts as a cable channel with enough room for cables and plugs. All end and middle clamps are pre-assembled and also available in a black anodised variant.

توضیحات:
Applications
tile roof

Module guidance
for portrait installation

Material
aluminium

Options
free-standing
