نام محصول:
سوپاپ
نام انگلیسی:

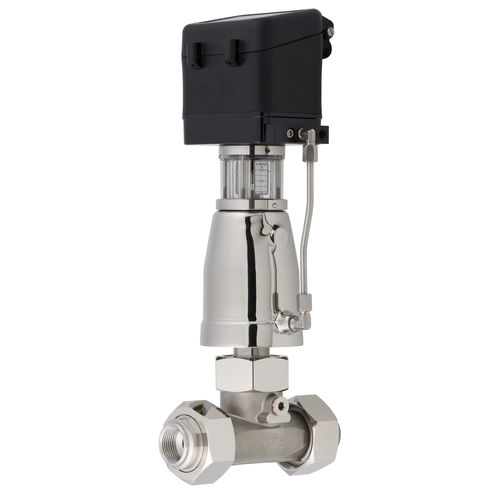

Pinch valve 7079
برند:
Schubert & Salzer Control Systems GmbH
مشخصات:
The pneumatic pinch valve type 7079 is a low dead space control valve and at the same time insensitive to dirty, abrasive and pasty media. Decisive for universal use is the straight hose passage for the operating medium – no flow deflection. The hygienic design using FDA-compliant tube materials as well as the simple design principle offer users from the chemical, food and pharmaceutical industries a real alternative.
Size:
DN 15 – DN 50
Pressure:
PN 6
Material:
Stainless steel 1.4408
(non-wetted part)
Temperature:
Media temperature: -40 °C to +160 °C
depending on the tube material
Connection –
Pipe threats nach DIN 2999
NPT-treats
Inner sticking socket PVC
Welding ends acc. to DIN or ISO
Tri-Clamp-connector (inch)
Positioner –
Digitaler positioner type 8049
– 2-wire, 4-wire
– Ex-Pro explosion-proof
– IO-Link
– Integrated process controller IPC
Pneumatic and electro-pneumatic positioner type 8047
– 2-wire
– Ex version
Accessories –
Limit switch
Position feedback
Pilot valve
…
Application –
Acids, alkalis, seawater, gases, vapours, liquids
Especially suitable for highly viscous and abrasive media, sludges, powders.
توضیحات:
Type
pinch
Operation
pneumatically-operated, electric
Function
regulating
Material$
stainless steel
Number of channels
3-way
Other characteristics
solids
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 Pa(0 psi)Max.: 6 Pa(0 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 170 °C(338 °F)
