نام محصول:
سوپاپ
نام انگلیسی:

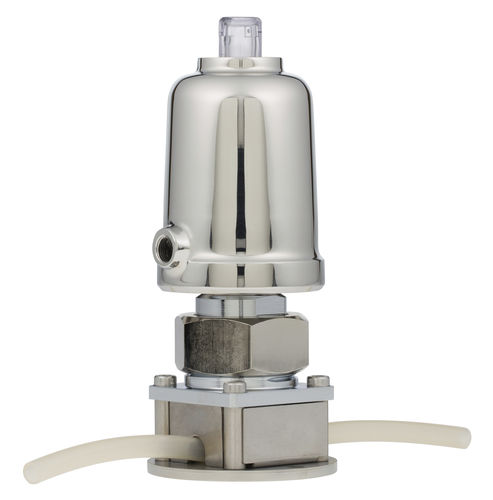

Pinch valve 7072
برند:
Schubert & Salzer Control Systems GmbH
مشخصات:
Probably the most hygienic way to shut off a media flow is if the valve does not touch the fluid at all. The endless tube pinch valve type 7072 works in accordance with this principle. In this compact pinch valve, the media flow in an endless tube is constricted by the pneumatic drive or released again by spring reset. The simple operating principle of the mini pinch valve is ideal for many critical applications in the chemical, food and pharmaceutical industries.
•Size:
DN6 – DN14
•Pressure:
Depending on the tube used
•Material:
Body in chrome-plated brass (no contact with the medium)
•Temperature:
Media temperature: -30 °C to +170 °C
(depending on the tube quality used)
Connection:
Passage of endless tubes with external diameters from 10 to 18 mm.
Accessories –
Limit switch
Pilot valve
Manual override
…
Actuator variants –
Pneumatic actuator
Application –
Acids, alkalis, seawater, gases, vapours, liquids
توضیحات:
Type
pinch
Operation
pneumatically-operated
Applications
hygienic
DN
Min.: 6 mm(0.236 in)Max.: 14 mm(0.551 in)
Pressure
Min.: 0 bar(0 psi)Max.: 4 bar(58 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 170 °C(338 °F)
