نام محصول:
سوپاپ
نام انگلیسی:

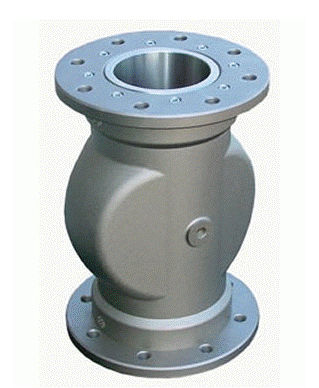

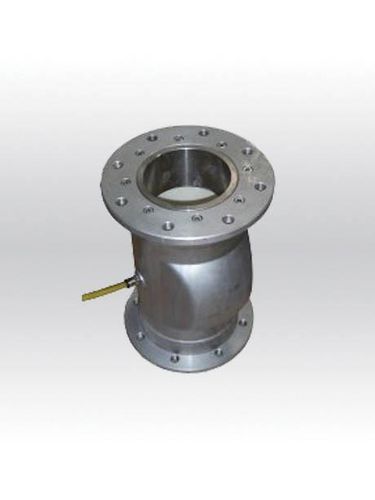

Pinch valve VM series
برند:
Palamatic Process
مشخصات:
For complete closure or flow regulation of materials in pneumatic conveying lines
Pinch valves permit the interception of the flow of materials in pneumatic conveying systems. Cheap solution, easy to install and with low maintenance, pinch valves are ideal for the passage of fluids such as liquid, gas or powder and to ensure complete sealing when closing.
12 models : from Ø 13 (VM013) to Ø 200 (VM0200)
The pinch valves are designed to be used to intercept the material flow in pneumatic conveying systems, or other pipelines (dense, corrosive or pasty mixture). The internal flexible sleeve is reshaped in such a way that the passage is hermetically sealed. normes atex certified palamatic process
Main advantages
Full bore-through passage : no load loss
Compact overall dimensions
Easy and quick sleeve and bush replacement
Full bore-through passage without any pressure loss
No product contact with the body
Valve body in aluminium alloy
Sleeves in fabric-reinforced material
Sleeve support bushes either in aluminium alloy, hardened carbon steel, or 304L/316L stainless steel
Very low air consumption
توضیحات:
Type
pinch
Function
flow control
Media
for gas
Body$
compact
Applications
for the food industry, for liquids, conveying, for powders
Material$
aluminum alloy
DN
Min.: 13 mm(0.512 in)Max.: 200 mm(7.874 in)
Pressure
3.5 bar(50.8 psi)
