نام محصول:
سوپاپ
نام انگلیسی:

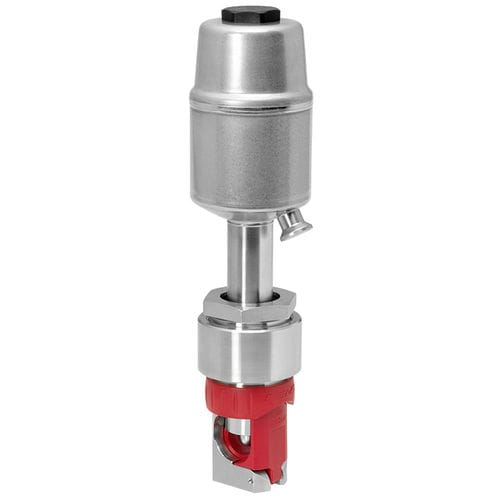

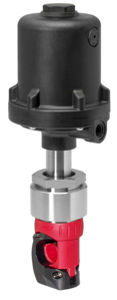

Pinch valve Q40
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:
The GEMÜ Q40 2/2-way pinch valve has a stainless steel piston actuator and is pneumatically operated. The valve guides a tube
which is compressed from above by a compressor to control and regulate media. The compressor’s specially developed
contour and the inserts’ contour minimise the strain on the tube and thus increase the tubes’ service life. Tubes can be safely
inserted and removed in simple steps and without tools. The available control functions are “normally closed (NC)” and
“normally open (NO)”. An integral optical position indicator is standardResistant stainless steel piston actuator, free from non-ferrous metals
Fast, safe tube replacement
Simple replacement of inserts and compressors for various tube sizes with the same actuator
High quality and long service life
Minimized strain on the tube due to the optimized compressor
Positioners and process controllers can be mounted
Several installation options possible in the plant thanks to the mounting flange or female thread on the body
Operating pressure:Please observe the tube manufacturer’s specifications
Tube’s outside diameter:1/4” | 3/8” | 7/16” | 1/2” | 5/8” | 3/4” | 7/8” | 1 1/8” | 1 1/6” | 1 1/4” | 1 2/5” | 1 13/32” | 1 3/7” | 1 1/2”
Body materials:1.4404/PA6 | PA6
توضیحات:
Type
pinch
Operation
pneumatically-operated
Media
for inert gases
Body$
flange
Material$
stainless steel, nylon
Number of channels
2/2-way
Other characteristics
normally closed, with actuator, normally open, pneumatic piston
DN
Min.: 0.125 inMax.: 1 in
Pressure
Min.: 2.5 bar(36.3 psi)Max.: 7 bar(101.5 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
