نام محصول:
سوپاپ
نام انگلیسی:

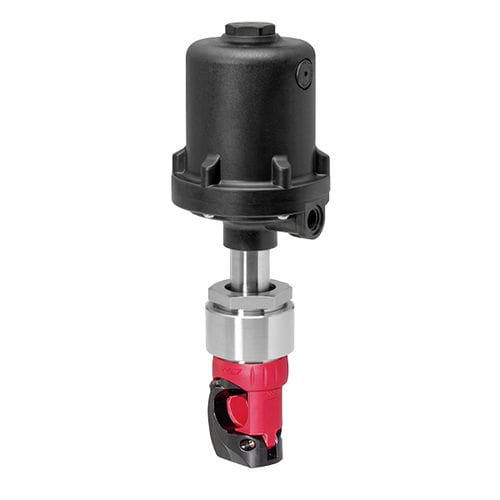

Pinch valve Q30
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:
The GEMÜ Q30 2/2-way pinch valve has a plastic piston actuator and is pneumatically operated. The valve guides a tube which is compressed from above by a compressor to control and regulate media. The compressor’s specially developed contour and the tube holder’s contour minimize the strain on the tube and thus increase the tubes’ service life. Tubes can be safely inserted and removed in simple steps and without tools. The available control functions are “normally closed (NC)” and “normally open (NO)”. An integral optical position indicator is standard.
Lightweight plastic piston actuator, free from non-ferrous metals
Fast, safe tube replacement
Simple replacement of inserts and compressors for various tube sizes with the same actuator
High quality and long service life
Minimized strain on the tube due to the optimized compressor
Positioners and process controllers can be mounted
Several installation options possible in the plant thanks to the mounting flange or female thread on the body
Media temperature:Please observe the tube manufacturer’s specifications
Operating pressure:Please observe the tube manufacturer’s specifications
Tube’s outside diameter:1/4” | 3/8” | 7/16” | 1/2” | 5/8” | 3/4” | 7/8” | 1 1/8” | 1 1/6” | 1 1/4” | 1 2/5” | 1 13/32” | 1 3/7” | 1 1/2”
Body materials:1.4404/PA6 | PA6
توضیحات:
Type
pinch
Operation
pneumatically-operated
Body$
mounting flange, female
Material$
plastic, stainless steel, nylon
Other characteristics
standard
DN
Min.: 35.69 mm(1.405 in)Max.: 38.1 mm(1.5 in)
Pressure
Min.: 2 bar(29 psi)Max.: 7 bar(101.5 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
