نام محصول:
سوپاپ
نام انگلیسی:

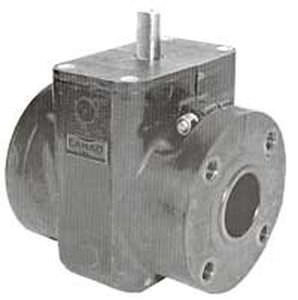

Pinch valve 22 Dia-Cam Series
برند:
Clark
مشخصات:
The Series 22 Dia-Cam Pinch Valve is a high flow capacity pinch valve with a flow-thru design to handle fluids like slurries. It only has one wet part, the PTFE-lined Diaphragm Spool.The valve doesn’t need flange gaskets. It has an on-off or flow control device. It is made to be corrosion-resistant and vinylester-fiberglass construction to provide flow control over the entire 90 degrees of valve stem travel. There are no dead zones on the valve intervals making it suitable with slurries. It has a maximum working pressure of 125 psig.
It is applied on lime slurry, limestone, pulp, sewage treatment fluids, FGD scrubber fluids, titanium dioxide slurries, brine, plastic pellets, glues, powders, paints, corrosive gels, personal care products and so on.
توضیحات:
Type
pinch
Operation
manual, electric
Function
flow control
Media
for sludge
Other characteristics
for high flow rates, quarter-turn
DN
Min.: 0.5 inMax.: 3 in
Pressure
125 psi
Temperature
Min.: -40 °F(-40 °C)Max.: 275 °F(135 °C)
