نام محصول:
سوئیچ SPDT
نام انگلیسی:
SPDT switch TLSM series
برند:
C&K Components
مشخصات:

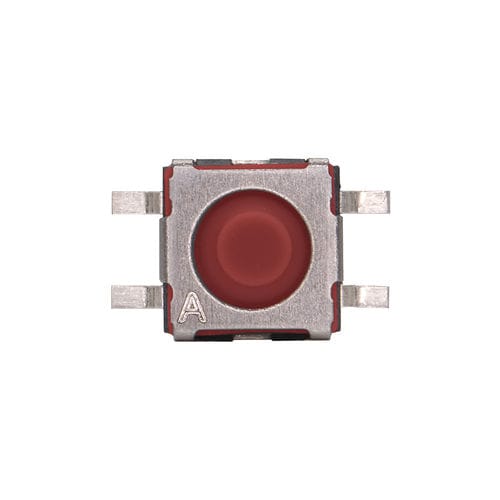

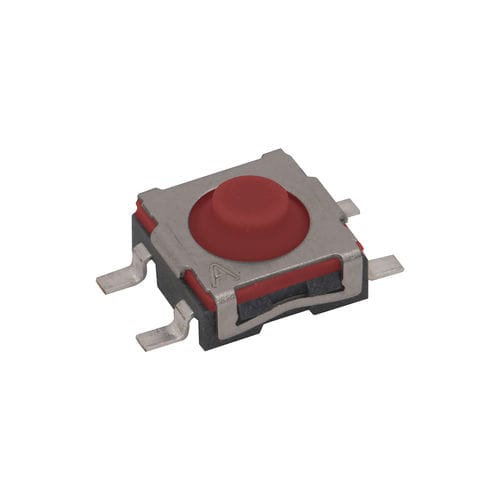

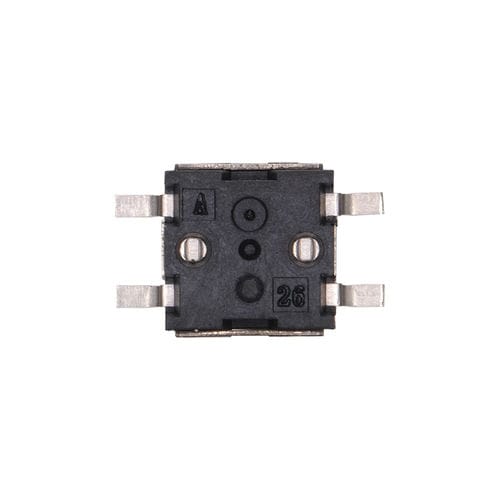

TLSM 6 mm compact top mount endurance SMT tact switch is a new addition to the C&K portfolio offering outstanding long life for its size with SPDT solution, meeting the needs in industrial, elevator and gaming applications. TLSM series has a 6.0 × 6.1 mm compact size and low profile at 3.45 mm product height. The switch offers 2N operating force, 0.3 mm travel and 2M long life cycles.
FEATURES AND BENEFITS
• 6.0 × 6.1 mm dimension
• Height 3.45 mm
• Soft acuator
• Long life – 2M cycles
• IP54
TYPICAL APPLICATIONS
• Industrial
• Elevator
• Gaming
SPECIFICATIONS
Electrical Life:
2,000,000
Insulation Resistance:
100 MΩ min.
Dielectric Strength:
Withstand voltage of AC250V (50 60HZ), 10mA for 60 ± 5s
Contact Resistance:
100mΩ max.
Solderability:
Lead free reflow soldering process according with IEC61760-1
توضیحات:
Number of poles
SPDT
Protection level
IP54
Other characteristics
industrial, compact
Primary current
50 mA
Voltage
16 V
Operating temperature
Min.: -40 °C(-40 °F)Max.: 95 °C(203 °F)
