نام محصول:
سوئیچ
نام انگلیسی:
DIP switch B1 series
برند:
OTTO
مشخصات:
The B1 series basic switches are ultra-subminiature in size, designed to reliably switch logic level signals as well as up to 2 amps switching capacity for a minimum of 25,000 cycles. Mechanical life expectancy is in excess of one million cycles.

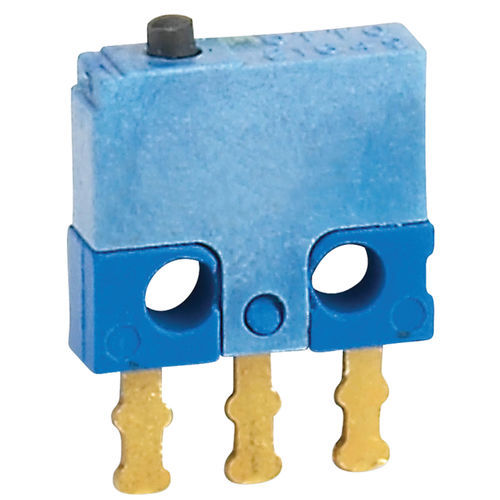

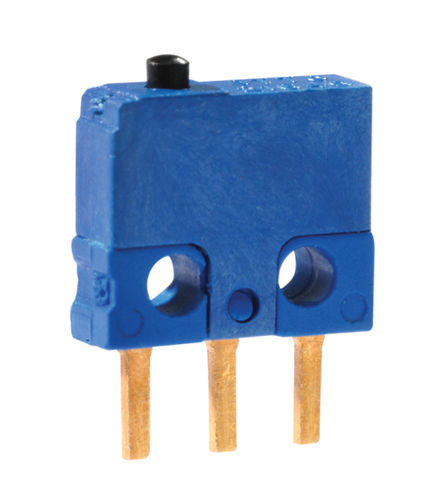

The molded housing is rugged and structurally stable. The terminals are molded-in and sealed against solder flux entering the switch. The terminals are available in a choice of double turret solder style and 0.020” x 0.025” PC pins.
The B1 series is also available with integral lever actuators as B1-5 series.
• Ultra-compact: only 0.300” w x 0.255” h x 0.100” thick
• 1 million cycle life, B1-5 Series
• Logic level switching capability
• Designed in accordance with MIL-PRF-8805/94
• Available in Commercial & Military grades
• Choice of solder or PC molded-in terminals
• Precision operating points
• Momentary action
• RoHS compliant
توضیحات:
Type
DIP
Number of poles
single-pole
Protection level
rugged
Other characteristics
mechanical, sealed, electromechanical, momentary, compact, subminiature
Primary current
10 mA
Voltage
28 V
Operating temperature
Max.: 125 °C(257 °F)Min.: -55 °C(-67 °F)
