نام محصول:
سوئیچ AC
نام انگلیسی:

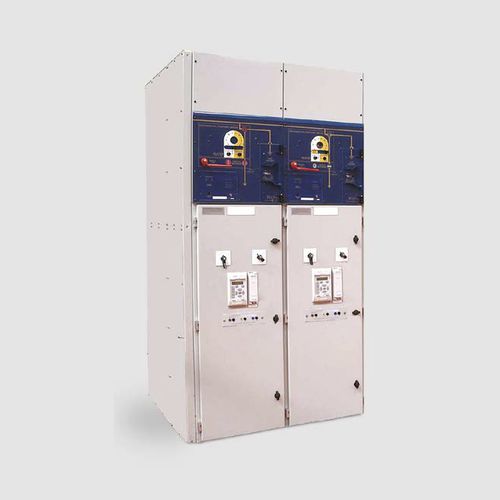

AC switchgear Eclipse
برند:
BRUSH Group
مشخصات:
The Eclipse is designed to provide a lifetime of unrivalled service, bringing together one of the most advanced operating mechanisms available on the market today – the award winning magnetic actuator technology. Appreciated throughout the distribution network and across every business sector, the Eclipse currently holds a leading market position for indoor 11kV switchgear.
Key Features
Superior technology with minimal maintenance
The fixed pattern design has the simplicity of air insulation and, with the low parts count (the total parts count has been reduced by a factor of x20 and the number of moving parts by a factor of x50), is more compact (500mm wide) than equivalent rated GIS equipment

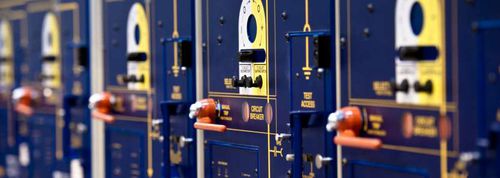

The Eclipse boasts of superior operator safety with a fully interlocked disconnector selector mechanism, animated front panel mimic and a front access cable test facility, eliminating the need for any intrusive access to high-voltage compartments
The Eclipse is certified to IEC62271 and available as a pre-engineered solution in ratings up to 25kA, 2000A. Alternatively, it can be fully engineered to meet exact customers needs
Endurance tested to 10,000 operations
Environmentally friendly vacuum interrupters
Internal arc containment
Voltage Presence Indication System
(VPIS) is fitted as standard to all panels (circuit)
Award-winning magnetic actuator technology powered from substation battery via contactors
Trip circuit supervision, self diagnostics & position indication contacts included as standard
Customer’s choice of protection
Ratings
Rated Normal Current
630/1250/2000A
Rated Voltage
12 kV
Rated Frequency
50 Hz
Rated BIL
75/95 kV pk
Rated Power Frequency Withstand
28/38 kV 1min
توضیحات:
Electrical characteristics
AC, high-voltage
Configuration
compact, vacuum
Other characteristics
fixed
Primary current
630 A, 1,250 A, 2,000 A
VAC
12 kV
