نام محصول:
سوئیچ کابل
نام انگلیسی:

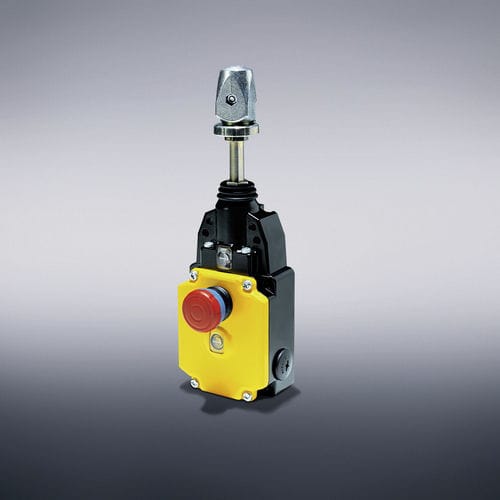

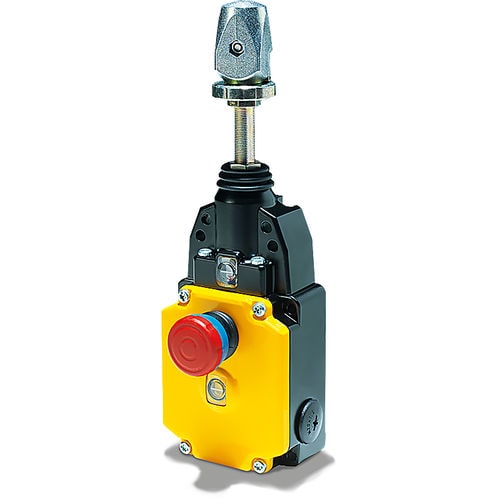

Cable-pull switch PSENrope
برند:
PILZ
مشخصات:
Whether on the assembly line or machine: where safety in the production area is concerned, the safe rope pull switches PSENrope are a proven, reliable solution. PSENrope switch off functional processes by manual operation.
PSENrope provide maximum safety when it matters: the emergency stop function can be triggered at any point along the rope. With a rope length of up to 75 metres, they are suitable for safeguarding large plants.

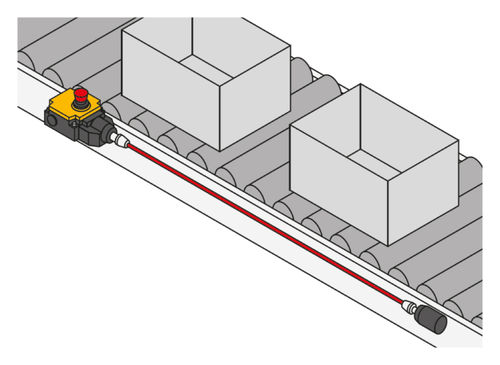

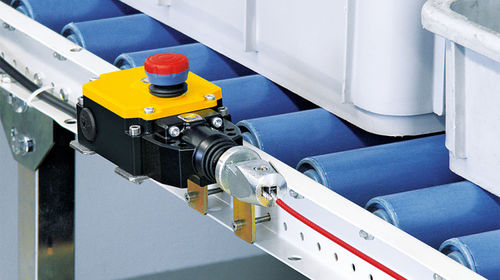

With PSENrope mini you have a particularly compact, cost-efficient rope pull switch with a rope length of up to 30 metres, for reliable protection on conveyors or machines. The sturdy metal or plastic housing ensures that it is highly robust.
Thanks to versions with straight and angled head, PSENrope mini are flexible and simple to install in various assembly situations. In addition to the versions with E-STOP function there are also versions with integrated reset button, which are suitable for concealed installation within the application.
Simple, convenient safety solution
-Simple installation and convenient management
-Flexible to use even when protecting large systems
-Extremely rugged thanks to robust finish and strong metal or plastic housing
-Highly robust thanks to sturdy metal or plastic housing
-Suitable for both indoor and outdoor use
-High level of safety as wiring space is physically separate from mechanics
-Cost-effective thanks to the combination of emergency stop and pull-to-release
Features of the rope pull switch
-Designed for applications up to: PL e of EN ISO 13849-1, SIL CL 3 of EN/IEC 62061

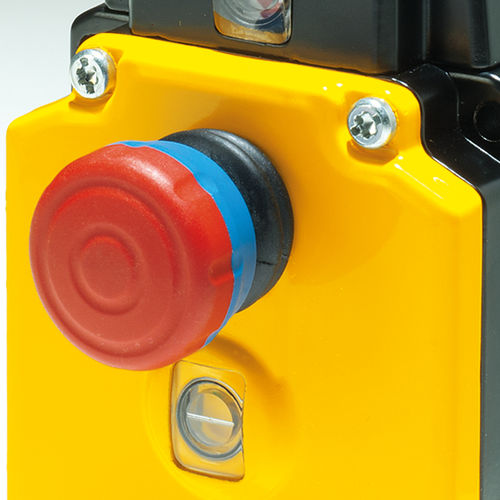

-Integrated E-STOP pushbutton
-Contacts: 2NC, 2 NO
توضیحات:
Type
cable-pull
Number of poles
2-pole
Protection level
rugged, IEC, robust, IP67
Mounting
in-line
Other characteristics
manual, with housing, with reset, safety, E-stop, compact, emergency stop
