نام محصول:
سوئیچ کابل
نام انگلیسی:

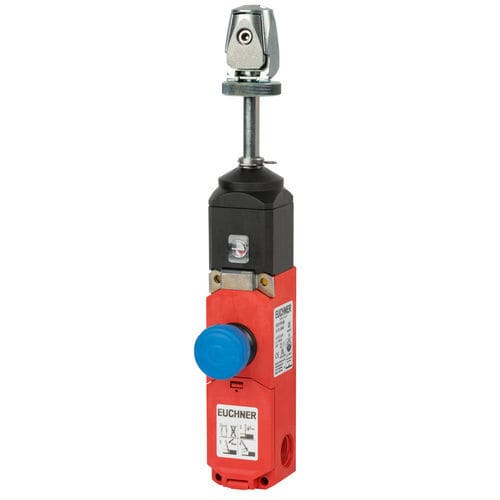

Cable-pull switch RPS2131PC100M
برند:
EUCHNER GmbH + Co. KG
مشخصات:
Rope pull switch with pull-to-reset button for EMERGENCY STOP device, clamping head
• Plastic housing
• Emergency stop device with detent mechanism according to EN ISO 13850 and EN 60204-1
• Clamping head for pull wire
• Indication of correct rope tension
• 3 cable entries M20 x 1.5
• Switching elements with 4 switching contacts
• Blue reset button
• Rope pull switches RPS are emergency stop devices for protecting large, expansive machine or installation areas that cannot be protected by an enclosing housing or cover. Areas of an installation or machine can be shut down immediately from any point in the working area in the event of danger.
• EMERGENCY STOP device with detent mechanism according to EN ISO 13850
• Indication of correct rope tension
• Switching elements with 4 switching contacts
توضیحات:
Type
cable-pull
Number of poles
single-pole
Protection level
reinforced, IP67
Other characteristics
with housing, emergency stop
Primary current
3 A
Voltage
240 V
Operating temperature
Min.: -25 °C(-13 °F)Max.: 70 °C(158 °F)
