نام محصول:
سوئیچ چرخشی
نام انگلیسی:
Rotary switch
برند:
Mitsumi Electric
مشخصات:
SIQ Series

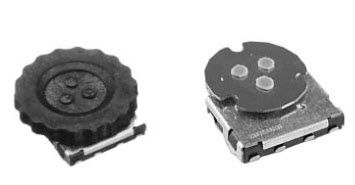

Slide and Rotary Encoder Switches
[FEATURES]
1. Minimized mounting area (11.1x10mm square).
2. 15 detent are available.
3. Can be operated with a rotary encoder and slide switch combined.
4. Multiple input type combined with a rotary encoder and slide switch. For example of using menu selection switch and determination switch.
5. Without-dial type to avoid discoloration of dial in reflow is also available.
6. Suitable for SMT reflow soldering.
7. For without-dial type, you can attach customized dial after reflow.
[APPLICATIONS]
1. For PDAs, DSCs, CD-MD players, other portable devices
[SPECIFICATIONS]
♦Electrical Characteristics
Rating : 10mA, 5V DC
Contact Resistance : 1Ω or less
توضیحات:
Type
rotary
Number of poles
multipole
Other characteristics
electromechanical
Primary current
10 mA
Voltage
5 V
