نام محصول:

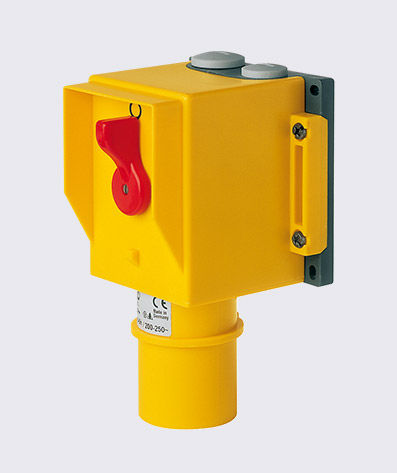

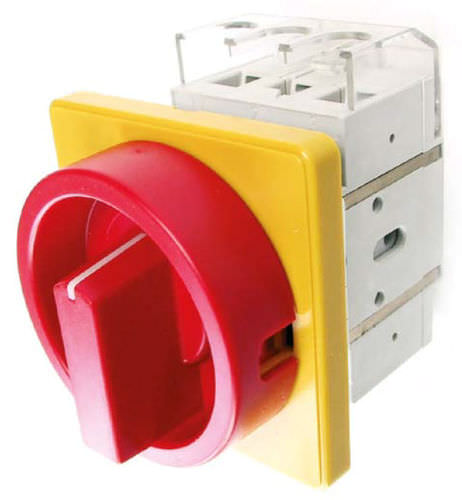

سوئیچ چرخشی
نام انگلیسی:
Rotary switch D series
برند:
ELEKTRA TAILFINGEN Schaltgeräte GmbH & Co. KG
مشخصات:
A manually operated main switch must be provided for each mains feed in order to disconnect the machine’s electrical equipment from the mains (e.g. when work on the electrical equipment is to be done).
Designed as a circuit breaker as per EN 60947-3 for category of use AC-23B
Manually operable with just one On and one Off position, which are clearly marked 0 and I
Visible isolating distance or position indicator, which can only indicate the Off position when a sufficient isolating distance as per EN 60947-3 exists between all contacts
Handle in black or grey

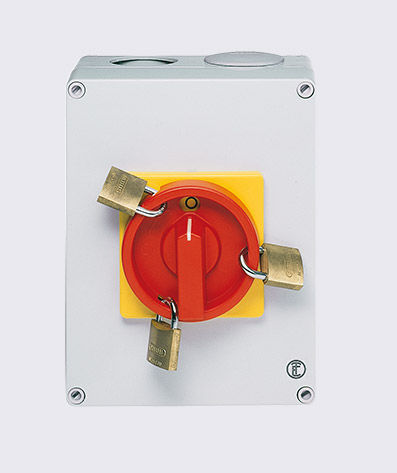

Can be locked in the Off position, e.g. with padlocks
Handle for the main switch easily accessible between 0.6 and 1.9m above the access level
Sufficient breaking capacity to cut off the largest motor’s current when stalled along with the total of all other motors’ and/or consumer units’ operating currents.
توضیحات:
Type
rotary
Number of poles
multipole
Protection level
IP65
Norms
CQC, CEI 60947, C-US UL
Mounting
DIN rail, wall-mount
Other characteristics
on/off, panel-mount, industrial, door, low-voltage, main, electromechanical, engine, emergency stop
Primary current
Min.: 25 AMax.: 1,000 A
