نام محصول:
سوئیچ پای کنترل
نام انگلیسی:

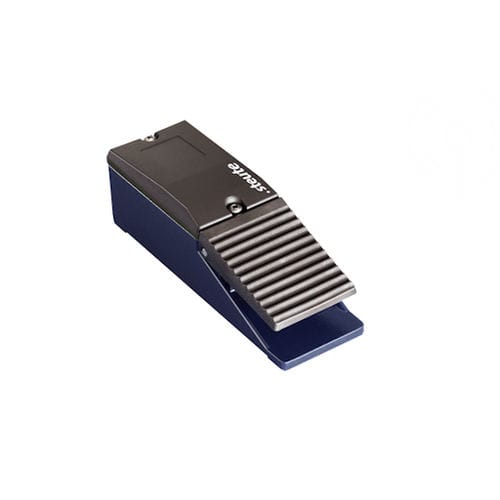

Control foot switch RF GF series
برند:
steute Schaltgeräte
مشخصات:
• Metal enclosure
• sWave® wireless technology (SW868/SW915/SW917)
• No power supply, no wiring and pipe laying required
• Easy programming of receiver
• Output signal can be individually configurated at the receiver
• Available on request with special finish in RAL colour tones
• Retrofittable for pedal cover Applied standards – EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61000-4-2, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure – aluminium die-cast, powder-coated
Cover – thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0
Pedal – thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0
Degree of protection – IP 67 to IEC/EN 60529
Voltage supply – electrodynamic energy generator
Ambient temperature – –20 °C … +65 °C
Operation cycles – max. 12000 telegrams with repetitions/h
Wireless range – max. 450 m outdoors,
max. 40 m indoors
Mechanical life – > 1 million operations
Actuating time – min. 80 ms
Notes – no status signal available
Wireless approvals – Europe: RED 2014/53/EU
USA: FCC – XK5-RF95SW915LR
Canada: IC – 5158A-RF95SW915LR
Mexico: IFT – RCPSTRF17-1884
Brazil: ANATEL 04580-18-06718
توضیحات:
Function
control
Technology
wireless
Type
single pedal
Other characteristics
IP67
