نام محصول:
سوئیچ مغناطیسی

نام انگلیسی:
Magnetic switch SSB-R series

برند:
SCHMERSAL

مشخصات:
For cost-effective and maintenance-free precision in the automotive sector and intralogistics

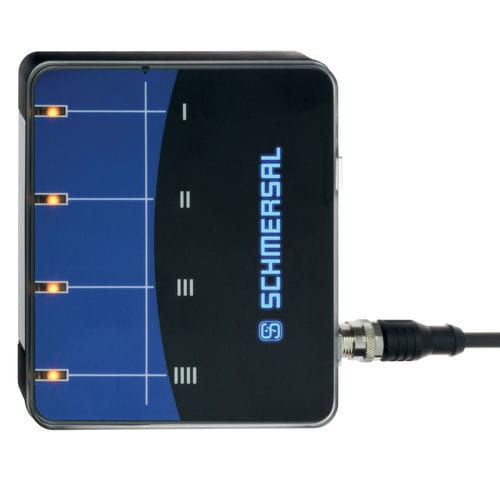

The SSB-R sensor box detects the field of suitable actuator magnets on four independent tracks and switches the signal status on pass-by. This level change, which occurs on rapid pass-by, is retained until the next activation, i.e., retentively. A connected control unit uses the signals to determine the position and section of the sensor box and controls, for example, the speed or holding positions of the drive motor.

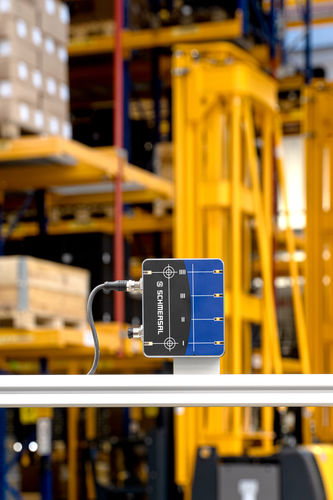

Two angle sensors in the sensor box allow a monorail conveyor to be brought to a halt at the desired stopping position with an accuracy of approx. 1.5 mm. This is of particular benefit at robot workstations, where components need to be positioned with extreme accuracy. No additional magnets are required to enable this fine positioning.

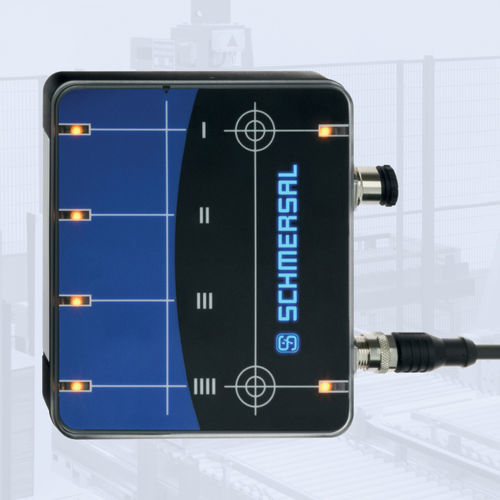

Furthermore, the sensor box also integrates four shielded tracks in latching reed technology. As such, the sensor box can be installed with ease with just a single M12 connector, which is much more straightforward than with previously used solenoid switches. In addition, a second connector can also be integrated into the sensor box to allow connection of additional signal evaluation without significant wiring effort.

The sensor box can be used up to a maximum speed of 300 m/min. Furthermore, it has IP 65 degree of protection and can be used in temperature ranges of -25°C to +70°C.

توضیحات:
Type
reed

Number of poles
multipole

Protection level
maintenance-free, IP67, shielded

Mounting
embedded

Other characteristics
contactless, magnetic, box

Primary current
1,500 mA

Voltage
24 V

Operating temperature
Min.: -25 °C(-13 °F)Max.: 70 °C(158 °F)
